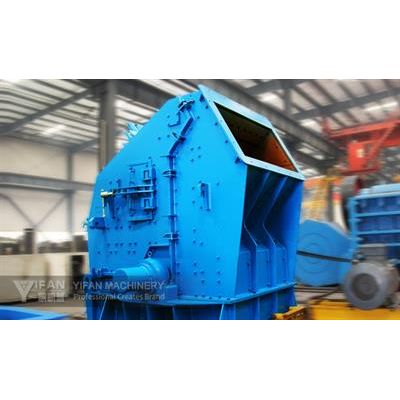

Yifan - Model CH Series -Impact Crusher

SHARE

CH series impact crusher is manufactured on the basis of advanced foreign technology and domestic applications. With the advantages of more human-oriented, simple design, reasonable structure, better cavity and large capacity, CH series impact crusher can crush all kinds of ores in primary and secondary crushing process.

Most popular related searches
impact crusher
secondary crushing
crushing equipment
water conservation
elemental analysis
impact crushing
primary crushing
can compactor
construction site water
  • Type:Primary crusher Feed Size:250mm-1200mm
  • Capacity:40-1200t/h
  • Materials:Granite, limestone, concrete, lime, plaster, limestone, etc.
  • Applications:Mining, metallurgy, construction, highway, railroad, water conservancy, etc.
  1. Heavy type rotor with optimized design, reasonable structure and enhancing rotational inertia can take finite element endurance analysis. It can achieve higher crushing ratio, better crushing and abrasion resistance performance.
  2. Standard scaleboard can increases interchangeability, which will decrease spare part repertory and variety, and make replacement much easier.
  3. Unique hydraulic device design is convenient for operators to open the chassis, replace accessories, and adjust the discharge gate.
  4. The simple structure of impact frame and grinding frame has the advantages of easy operation, convenient maintenance and low cost.
