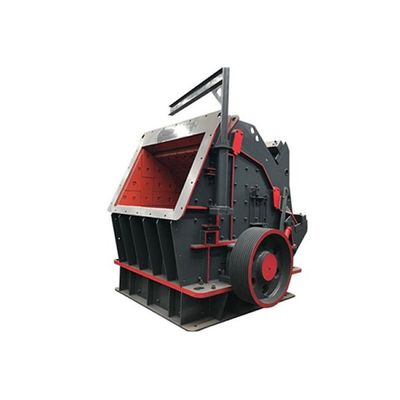

Sunvit - Model PF/1007/1010/1210/1214/1315/1515/1320/1520 -Impact Crusher
Impact crushers use impact energy to crush materials, The rotor rotates at high speed driven by an electric motor, The material entering from the inlet collides with the hammer on the rotor, Crushed by the high-speed impact of the plate hammer, The crushed material is pushed back to the liner after being crushed again, Discharge from the outlet. Used in metallurgy, mining, cement, chemical refractory materials and ceramics and other industrial sectors, as well as highway construction, water conservancy engineering, construction gravel, mechanical sand processing and other fields.
When working, driven by an electric motor, The rotor rotates at high speed, The material enters and is broken with a plate hammer on the rotor, It was then thrown onto the counter-attack device and shattered again, It then bounces off the counter-attack liner back into the plate hammer area to break again, This process is repeated, The material enters the counterattack chamber from large to small and is repeatedly crushed, Until the material is crushed to the desired particle size, Drained by the outlet. Adjusting the gap between the impact frame and the rotor can achieve the purpose of changing the particle size and shape of the material.
- The clearance between the impact plate and the plate hammer is easy to adjust, Effective control of discharge Particle size Particle shape is good.
- Large inlet, High crushing chamber, Adapt to the large hardness of the material, Product Less stone powder.
- Use a high chrome plate hammer, Long impact service life.
- Can crush a variety of materials, Wide range of applications.
