Keestrack N.V.
Keestrack - Model R3 -Impact Crusher
FromKeestrack N.V.

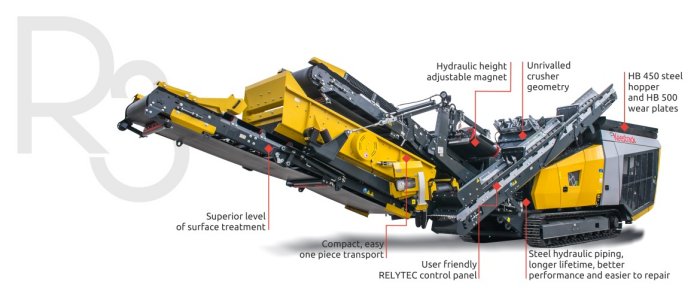

R3 Impact Crusher its ground breaking design won the prestigious Red Dot Design Award, the German Design Price and the Big See Award because of innovative technology, like the zero-emission plug-in electric drive system, high sustainability, high safety standards and the powerful and functional design which makes this compact impactor a winner in its class.
Most popular related searches
impact crusher
landfill recycling
secondary crushing
vibrating feeder
zero emissions
construction waste
demolition waste
zero emissions power
clean construction
screening and crushing
Performance highlights
- Available in full hybrid e version
- Equipped in closed circuit < 30.000 kg, easy to transport without permit
- Hopper 3,5 m³ (4,5 yard³)
- Vibrating feeder with punched plate pre screen 1.200 mm x 920 mm (4’ x 3’)
- Due to integrated pre screen, higher crushing capacities and less wear
- Inlet opening (H x W) 770 x 960 mm (30” x 38’’)
- Superior rotor diameter 1.100 mm (44”)
- Optional 3rd impact panel as milling beam to produce high value end product
- Optional single deck after screen 3.100 x 1.400 mm (9’ x 4’)
- Optional double deck after screen 3.100 x 1.400 mm (9’ x 4’)
- Capacity up to 250 tonnes / hour
- Load sensing hydraulic system reduces fuel usage by 25%
- 2 speed track drive
- Highest reduction ratio
- Superior product shape
- Extensive option list to configure to your application
- Optional windsifter
- Limestone and many other low and medium abrasive natural rock
- Concrete and landfill recycling
- Primary and secondary crushing
- Yard clean up
- Construction waste
- Demolition waste
- Quarrying and mining
- Gravel
- Asphalt
- Coal and others
