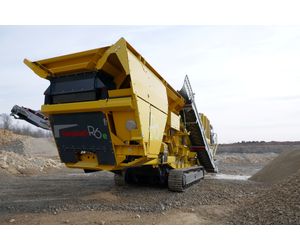

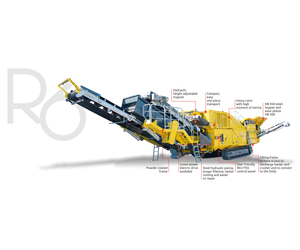

Keestrack - Model R6 -Impact Crusher R Series
FromKeestrack N.V.
Proven heavy duty impactor, with after screen transportable in one piece, easy to set-up without any support legs and highly productive in recycling , aggregates production, quarrying and mining. The full electric plug-in version can produce at zero carbon footprint.Most popular related searches
zero carbon footprint
stockpile conveyor
aggregate product
landfill recycling
carbon footprint
secondary crushing
screening and crushing
impact crusher
construction waste
quarrying
- Unrivaled Performance
- Hopper 7 m³ (9 yard³)
- Independent 2-deck pre-screen 3.100 x 1.250 mm (10’ x 4’)
- Due to long pre screen, higher crushing capacities and less wear
- Inlet opening (H x W) 970 x 1.300 mm (38” x 51”)
- Very robust HB 450 rotor; diameter 1.276 mm (50”), rotor width 1.250 mm (49”)
- Optional 2 deck after screen 4.500 x 1.500 mm (15’ x 5’), removable with standing legs
- Swiveling oversize return conveyor / stockpile conveyor
- Also available in Electric version with electric or direct driven Rotor by Diesel engine
- Tilting chassis
- Capacity up to 500 tonnes / hour
- Load sensing hydraulic system reduces fuel usage by 25%
- 2 speed track drive
- Dolly transport system available
- Highest reduction ratio
- Superior product shape
- Extensive option list to configure to your application
- Optional windsifterUnrivaled Performance
- Hopper 7 m³ (9 yard³)
- Independent 2-deck pre-screen 3.100 x 1.250 mm (10’ x 4’)
- Due to long pre screen, higher crushing capacities and less wear
- Inlet opening (H x W) 970 x 1.300 mm (38” x 51”)
- Very robust HB 450 rotor; diameter 1.276 mm (50”), rotor width 1.250 mm (49”)
- Optional 2 deck after screen 4.500 x 1.500 mm (15’ x 5’), removable with standing legs
- Swiveling oversize return conveyor / stockpile conveyor
- Also available in Electric version with electric or direct driven Rotor by Diesel engine
- Tilting chassis
- Capacity up to 500 tonnes / hour
- Load sensing hydraulic system reduces fuel usage by 25%
- 2 speed track drive
- Dolly transport system available
- Highest reduction ratio
- Superior product shape
- Extensive option list to configure to your application
- Optional windsifter
- Weight
50 t (55 sT)
60 t (66 sT)
- Length
16.700 mm (54’9”)
17.800 mm (58’5”)
16.700 mm (54’9”)
20.100 mm (65’11”) - Height
3.670 mm (12’1”)
3.670 mm (12’1”)
- Width
3.000 mm (10’)
3.200 mm (10’6”)
- Limestone and many other natural rock
- Concrete and landfill recycling
- Primary and secondary crushing
- Yard clean up
- Construction waste
- Demolition
- Quarrying and mining
- Gravel
- Asphalt
- Coal and others
