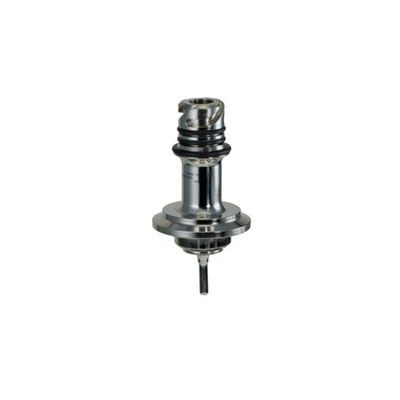

iTHERM - Model TT412 -Imperial Hygienic Thermowell, US Style
Designed for hygienic and aseptic applications in the Food & Beverages and Life Sciences industries. Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular re-calibration by simply replacing the insert in closed processes.
-
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration of the insert used
-
All common hygienic process connections
-
International certification: hygiene standards as per 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
-
Fast response time owing to reduced tips with thin walls
-
State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
-
Pressure range up to 40 bar (580 psi)
-
For increased protection requirements of the temperature sensor regarding physical and chemical effects
-
For use in pipes and containers or tanks
-
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes
- Measuring Principle: Fabricated Thermowell
- Characteristic / Application:
- imperial style
- hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA)
- hygienic process connections
- QuickNeck for easy and cost saving recalibration
- Head connection:
- QuickNeck
- NPT1/2
- Maximum standard immersion length: 48" (1.219 mm)
- Process connection:
- weld in adaptor
- clamp connections acc. to ISO2852
- thread acc. to ISO 228 for liquiphant adaptor APV Inline Varivent
- T- and corner pieces DIN11865
- Thermowell root diameter:
- 1/4" (6,35 mm)
- 3/8" (9,525 mm)
- 1/2" (12,7mm)
- Medium contact material: 316L
- Wetted part finishing (Ra):
- < 30 μinch (0,76 μm)
- < 15 µinch(0,38 μm)
- < 15 μinch (0,38 µm) electropolished
- Tip shape:
- straight
- reduced
- Temperature range: -200...650 °C (-328...1.202 °F)
- Max. process pressure (static): 40 bar (580 psi)
- Max. process pressure at 400 °C: depends on process connection
