The HLR 100C enables packaged RTU systems to be replaced with smaller tonnage systems which cost less and consume less energy. Modules recover energy by cleaning indoor air using Sorbent Ventilation Technology® so that indoor air can be safely recirculated. The HLR 100C complies with ASHRAE Standard 62.1 and is easily integrated with most standard RTU curbs. The award-winning, industry-proven Sorbent Ventilation Technology inside the HLR 100C helps owners lower equipment replacement costs, decrease energy consumption, and achieve decarbonization goals with the easiest, most cost-effective ventilation solution on the market.
enVerid
enVerid - Model HLR 100C -Air Cleaning Module for HVAC Systems
FromenVerid
The HLR 100C Air Cleaning Module from enVerid is a sophisticated solution designed to enhance energy efficiency and air quality in buildings. It integrates seamlessly with standard rooftop HVAC systems by fitting into existing roof curbs, allowing for the replacement of larger units with smaller, more cost-effective ones. Utilizing patented Sorbent Ventilation Technology, the HLR 100C captures and eliminates contaminants from the air without generating byproducts, enabling up to an 85% reduction in outside air ventilation rates. Its flexibility and ease of installation make it suitable for diverse applications, including office spaces, schools, and warehouses, as specified in ASHRAE Standard 62.1. Proven effective through ASHRAE 145.2 testing and recognized by industry accolades, this module aligns with decarbonization initiatives by slashing energy use and associated costs. Global deployments have substantiated its performance and savings, fortified by support from the U.S. Department of Energy and various utility incentives.
Most popular related searches
air cleaning
HVAC system
clean air
indoor air
HVAC equipment
HVAC
contaminants removal
industrial ventilation system
decarbonization
workplace air
Lower Replacement Cost, Decrease Energy Consumption
Indoor Air Scrubbing

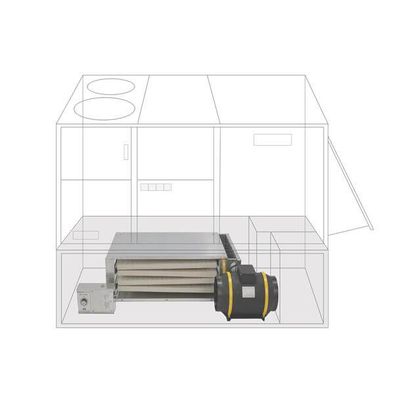

HLR 100C modules are integrated with packaged rooftop HVAC equipment by installing them inside standard roof curbs. Air is drawn into the HLR 100C by internal fans, which push the air through sorbent filters that capture and remove all the contaminants of concern from the air stream. Without producing any byproducts, the HLR 100C then pushes clean air back into the return air stream. By cleaning recirculated air, outside air ventilation rates can be safely reduced by up to 85%, and new HVAC equipment can be downsized, using the ASHRAE Standard 62.1 IAQ Procedure.
The HLR 100C can be easily integrated with standard commercial RTUs ranging in capacity from 3 to 25 tone. Pairing the HLR 100C module with RTUs provides benefits to a variety of building types that fall under ASHRAE Standard 62.1 including offices, schools, higher education, retail, and conditioned warehouses. Given its small size, flexible orientations, and simple installation, the HLR 100C is ideally suited for both existing building retrofits and new construction.
