Hamilton - Model ZANDAIR PCOC3 -In-Duct Air Purification System
The need for filtered air has never been more important. No matter how well you maintain your laboratory, your work area can be filled with air pollutants, volatile organic compounds (VOCs), chemically active compounds (CACs), aldehydes, carcinogenic materials, carbon monoxide, viruses and bacteria, dust particles, mold spores, cleaning chemicals, and more. The need for filtered air has never been more important. No matter how well you maintain your laboratory, your work area can be filled with air pollutants, volatile organic compounds (VOCs), chemically active compounds (CACs), aldehydes, carcinogenic materials, carbon monoxide, viruses and bacteria, dust particles, mold spores, cleaning chemicals, and more.
- IVF laboratories
- Culture environments
- Embryo development
The ZANDAIR PCOC3 (Photocatalytic Oxidation Chamber) model is a powder-coated metal encased unit to be fitted into the HVAC/AHU unit or the air ducting to provide an airtight flow of the airstream through the unit. The PCOC3 may be installed into newly constructed HVAC/AHU systems or can be retrofitted into existing air filtration systems with HEPA filters in place. Available for in-duct installation or external rooftop installation.
This model consists of three chambers, each with photocatalytic grids for maximum breakup of the volatile organic compounds passing in the airstream.

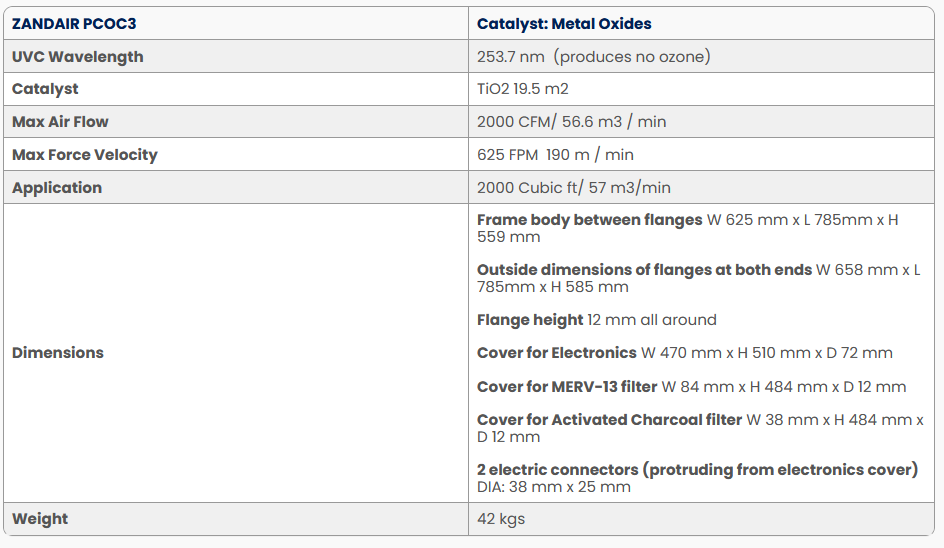

A single ZANDAIR PCOC3 handles 2000 CFM airflow. Area to be covered is a function of that volume of air for the intended ACH (Air Changes Per Hour), 6 to 15 ACH recommended.
Available spaces for an optional/removable MERV-13 (Minimum Efficiency Reporting Value) filter and a Potassium Permanganate Filter (PPF) specially formulated to adsorb any ambient formaldehyde/aldehydes.
