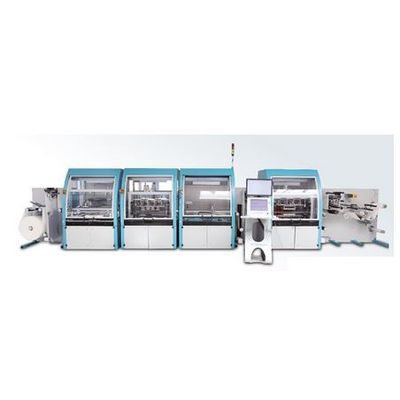

Muhlbauer - Model APS 350 -In-House Antenna Printing System
The completely new approach of the APS makes it possible for Smart Label suppliers to print their own antennas In-house on demand. The new process is cleaner and faster than all the conventional antenna technologies currently on the market. With APS 350 even 80 000 silver or copper ink antennas per hour on paper can be produced, undergoing an integrated quality assurance system. Especially for Smart Label producers that underlie fast reaction times, the APS is an interesting tool as they can produce antennas within hours instead of weeks.
Most popular related searches
BENEFITS
- Pure paper & copper product
- Environmentally Friendly (Green Process)
- Enables two layer products (Green Design)
- Cost Reduction up to 40%
- Time Saving
ADVANTAGES
- Supply Chain Compression
- Print on Demand Flexibility
- Rapid Prototyping
- Two layer“ RFID Product (pure paper)
- wide web 350 mm
TROUGHPUT
- Up to 8m/min
- Up to 80 000 UPH (20 mm pitch, 4 row)
- 600 Mio. (per year)
