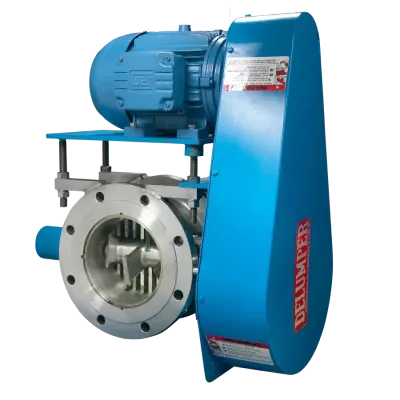

Franklin Miller Pipeline Delumper - In-Line Lump Breaker
The ultra-compact PIPELINE DELUMPER® is an in-line lump breaker designed for improving flow properties in fully enclosed pipe systems. It effectively chops, shreds, and suspends solids, preventing blockages and enhancing the free flow of sludges, slurries, and solids-laden streams. The unit is engineered for integration with liquid, pneumatic, or gravity systems, offering a robust solution for reducing solute particles to a uniform output size, aiding in efficient mixing, drying, and dissolving processes. The design includes a self-clearing and self-feeding mechanism, minimizing downtime and enhancing operational control. Key features include standard 150# ASA flanges, optional 600# flanges, a replaceable liner system, and material construction options like carbon steel or 316L stainless steel. It also features hardfacing for extended durability in abrasive conditions. This equipment safeguards sensitive media and protects nozzles, pumps, and downstream equipment from damage, making it an essential addition for enhancing operational efficiency.The PIPELINE DELUMPER® is a proven in-line lump breaker that chops, shreds, disperses and suspends solids directly in fully enclosed pipe systems. This straight-through ultra-compact unit rectifies flow properties of heavy sludge, slurries and solids-laden streams. The PIPELINE DELUMPER® alleviates blockages, works the stream to free flow and improves processing. It can prevent damage to pumps, piping, valves, nozzles and downstream equipment. This unit has proven itself as a valuable problem solver in process systems worldwide.
- Low Friction Cutter Design
- Individually Replaceable Teeth
- Heavy Duty Precision Construction
- High Capacity
- Minimal Fines
- Low Friction Cutter Design
- Individually Replaceable Teeth
- Heavy Duty Precision Construction
- High Capacity
- Minimal Fines
The PIPELINE DELUMPER improves product quality, blend and consistency. It instantly reduces tough solids to a uniform output size, and improves mixing, drying and dissolving operations. Nozzles are kept clear and sensitive media is protected. The result is reduced downtime, a process that is in better control, and substantial savings to the operation.
The ultra-compact PIPELINE DELUMPER® is designed for easy installation in straight-thru, liquid, pneumatic or gravity systems. This unit aggressively reduces solids up to the full pipe size with a self-clearing, self-feeding mechanism. It is supplied with an effective seal system housed in an easy to maintain bearing/seal cartridge. This cartridge design eliminates the need for plant personnel to handle delicate seal components. A choice of seals is available.
The PIPELINE DELUMPER® converts a solids-laden stream into a fully suspended homogeneous flow ... instantly. It stops settling out, clustering and over-pressure. The reduced particles are entrained in the stream, away from the pipe walls. Scale that becomes dislodged from reactors, silos and tank is crushed before it can impede the flow.
The PIPELINE DELUMPER® can be configured to meet most application requirements. Units are supplied with standard 150# ASA flanges and can be supplied with up to 600# flanges. Packings, mechanical seals or nitrogen purge deals can be provided.
A unique replaceable liner system allows for the complete periodic renewal of the unit interior. An optional sizing screen can be provided for fine particle reduction. Controls and zero speed indicators are also available. Units are provided in carbon steel, 304L or 316L stainless steel, and special nickel alloys.
A unique hardfacing option is available for extended cutter life under abrasive conditions.
