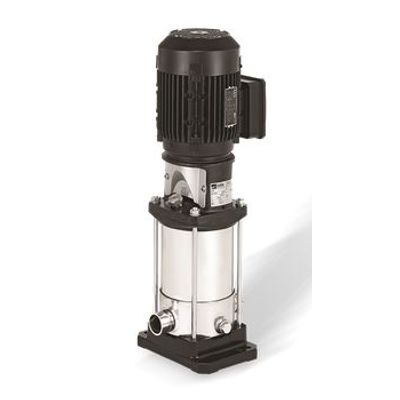

Carver - Model RSV -In-line Vertical Multistage Pump

The RSV is a general-purpose, high-pressure pump built to handle a wide variety of flows, pressures and temperatures. With stainless steel construction, this pump is ideal for a variety of potable water and process applications. Its vertical in-line design allows for a small installation footprint, further enhancing its adaptability to many different systems.

The RSV is available in nine sizes, for flow rates to 400 GPM. With its modular construction, each pump can be constructed with a number of stages to meet the application’s required pressure.

Our pumps are manufactured with the highest standards of quality. Strict controls throughout the manufacturing process, along with high hydraulic efficiency, ensure reliable operating performance and low lifetime cost. These pumps meet U.S. Department of Energy (DOE) pump efficiency standards.

• Commercial
• Desalination / Municipal

Materials of Construction

• Outer Casing304SS or 316SS
• Intermediate Casing304SS or 315SS
• Bottom CasingCast Iron, 304SS or 316SS
• Impeller304SS or 316SS
• Shaft316SS
• Wear RingPTFE or 316SS

DESIGN DATA

• ImpellerEnclosed, High Efficiency
• MountingVertical In-Line
• Thrust BearingSealed Ball Bearings
• ConnectionANSI Raised-Face Flanges (150, 250 & 300 lbs.)
