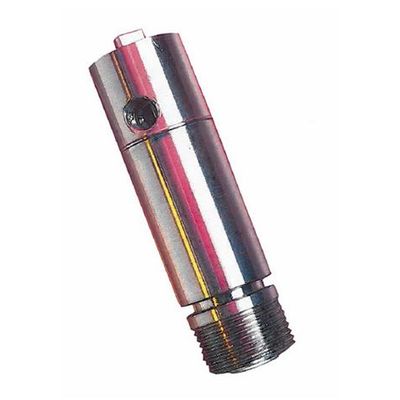

Cambridge-Viscosity - Model 372 -In-Line Viscometer- Flow Through Sensor
The Cambridge Viscosity Model 372 is an In-Line Flow-Through Viscometer for Laboratory and Process Fluids.

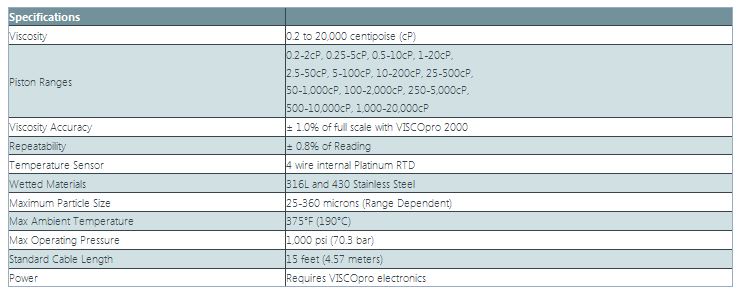

- Viscosity Range: 0.2 to 20,000 centipoise (cP)
- Repeatability Icon
- Repeatability: ± 0.8% of Reading
- icon green-accurate
- Accuracy: ± 1.0% of full scale with VISCOpro 2000
- Temperature Icon
- Maximum Temperature: 375°F (190°C)
- Pressure Range Icon
- Pressure Range: 1,000 psi (70.3 bar)
- Wetted Parts Icon
- Wetted Parts: 316L and 430 Stainless Steel
Dynamic Viscosity and Temperature Tracking for Laboratory and Process Fluids
Cambridge Viscosity’s Model SPC/L372J is a flow-through viscometer that is installed in laboratory and process fluids to provide continuous temperature and viscosity tracking. Our technology is based on a simple and reliable electromagnetic concept. Two coils move a piston back and forth magnetically at a constant force. Proprietary circuitry analyzes the piston’s two-way travel time to measure absolute viscosity.
A deflector, positioned over the piston, moves fluid into the measurement chamber. This feature, coupled with the constant piston motion, keeps the sample fresh and mechanically scrubs the chamber. A built-in temperature detector (RTD) senses actual temperature in the measurement chamber.
Cambridge Viscosity’s Model SPC/L372J is a flow-through viscometer that is installed in laboratory and process fluids to provide continuous temperature and viscosity tracking. Our technology is based on a simple and reliable electromagnetic concept. Two coils move a piston back and forth magnetically at a constant force. Proprietary circuitry analyzes the piston’s two-way travel time to measure absolute viscosity.
A deflector, positioned over the piston, moves fluid into the measurement chamber. This feature, coupled with the constant piston motion, keeps the sample fresh and mechanically scrubs the chamber. A built-in temperature detector (RTD) senses actual temperature in the measurement chamber.
- Approved for Class 1, Div. 1, Group C & D
- Approved for EEx d IIC T2, -20C<Tamb<190C
- Alberta Boilers Safety Association (ABSA) CRN# 0F07232.2
