Terra - In-Line XRF Analzyer

In metal material analysis and grade identification, manually operated handheld XRF analysis is an efficient testing method. However, when there are a large number of products that need to be inspected or downstream customers require complete inspection of products, in the face of huge amount of inspection tasks, hand-held XRF analyzers using manual inspection can no longer meet the requirement of the factory. Therefore, ARX Scientific launched the Terra In-line 700 series of online XRF analyzers, which can well meet the needs of users for online real-time detection of large-scale products. The chemical element composition information and the screening of faulty products have greatly improved the detection efficiency and reduced labor costs.

AXR Scientific In-line XRF analyzer Terra 700 series can be flexibly configured, and can be effectively integrated with robotic arms and automatic devices according to the layout and actual situation of the factory production line to form an efficient detection solution that meets the characteristics of different samples. The whole process of detection is controlled by automation without too much human intervention. The entire online inspection solution can perform real-time inspection and quality control of production line products around the clock.

Metal production and processing manufacturing quality control

It can be used for real-time material composition detection of large quantities of metal bars, pipes, billet products and large quantities of machined parts in the process of metal production, processing, and 24-hour uninterrupted operation. For metal materials and parts used in automobile, aerospace, nuclear power and other industries, due to the need for safety, online complete inspection is selected instead of random inspection to ensure that the product quality is 100% up to standard. It can not only display the content and grade of chemical elements, but also conduct PASS/FAIL qualified testing.

Ore Grade Control

The sorting of ore and the control of ore grade in the mining process are very important. Terra In-line XRF analyzer 700 can be flexibly configured to analyze the ore on the conveyor belt, which can greatly improve the analysis efficiency and ensure the consistency of ore grade. . The cost of raw materials is saved, the production efficiency is improved, and the rapid recovery of equipment input costs can be achieved.

More Applications

In addition to being used for solid online composition analysis, Terra In-line700 series can also perform online real-time detection of solid film thickness, such as metal coating, solar cell coating, copper tin plating, etc. It can also be used for online composition analysis of liquids or fluids, such as electroplating Liquid, online analysis of copper foil industry, etc.

• 24/7 operation
• It can realize mass production and 100% quality control of processed products
• Configured to provide pass/fail results, accurate alloy grades, and material chemical         composition information
• Elemental analysis range: K19-U92 potassium to uranium, analyzable content range: 1ppm- 99.99%
• Fast analysis, results in seconds
• Rugged design, suitable for various environments
• Suitable for quality management of alloys, coatings, liquids and other materials

• Through proprietary data acquisition and processing software, real-time online inspection data can be effectively managed.
• The instrument is equipped with Ethernet (RJ-45 network port) data can be connected with PC remotely to realize remote real-time monitoring.

Fast Analysis and 7x24 Running
Using a high-performance SDD detector, a variety of alloy grades can be identified. Quickly determine the quality of each batch of products, and display the element content in real time

Easy to Integrate and Install

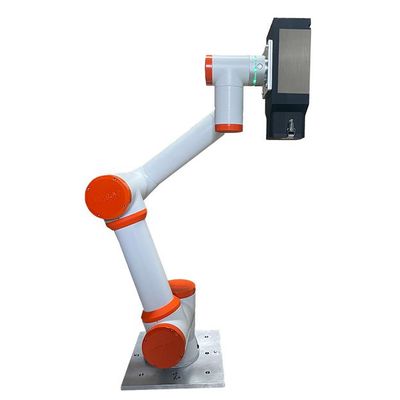

Unique design, easy to install on robotic arm or production line.
Interface Options: Ethernet (RJ-45) USB
DC power interface

Low Maintenance Cost
Rugged, dust-proof, moisture-proof and vibration-proof, it can work uninterrupted under the environmental conditions of the factory site

Quick Recovery of Costs
Automated inspection solutions can help factories significantly reduce manual inspection costs, save analysis time, and improve product manufacturing efficiency. So as to realize the rapid recovery of the cost of the online automatic detection equipment.

• Excitation Source X-ray tube: Rhodium or tungsten anode target (optimized for application), 5 to 200 μA, 8 to 50keV (4 W max)
• Detector High performance SDD detector
• Power Supply 9 V AC power adapter
• Analysis Mode  Alloy or Coating
• Analysis range Elements from Potassium (K19) to Uranium (U92)
• IP Rating IP54
• Temperature Range ?10 °C to 50 °C, continuous operation
• Humidity 10 % to 90 % relative humidity, non-condensing
• Operating System Linux
• Software Proprietary data acquisition and processing software package
