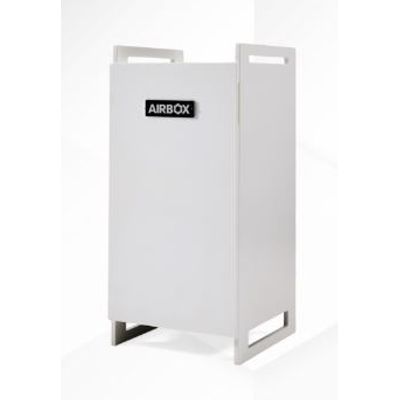

AirBox - Model Peak Series -In-Room Portable Purification Unit
The AirBox Peak Series is a commercial-grade air purification unit designed for effective indoor air quality management. Capable of generating up to 440 CFM of clean airflow, it employs cleanroom-grade filtration technology, making it a reliable choice for sustainable indoor environments. The Peak Series incorporates a 3-stage filtration system, including dual MERV 9A pre-filters, MERV 7 Pleated Activated Carbon filters, and Certified HEPA filters. These components ensure a minimum efficiency of 99.99% at 0.3 microns, with an option for Chem Shield Molecular Adsorbent to tackle specific VOCs. The design supports optimal energy efficiency and maintenance through features like variable speed direct-drive fan motors and IP68 rated connectors, paired with intelligent controls that schedule operations to coincide with occupied times. Meeting standards such as ASHRAE 62.1 and 241, the unit is suitable for various settings, including classrooms and patient rooms.
In-Room Portable Purification Unit – Capable of up to 440 CFM (394 CFM VACSi) (Cubic Feet per Minute) Clean Airflow
To have safer, cleaner air in your commercial space, you need a commercial-grade air cleaner, and the AirBox Peak Series is up for the challenge. Engineered using cleanroom-grade filtration technology to produce equivalent clean air, the Peak should be your top consideration for a long term, sustainable, compliant indoor air quality solution.
As AirBox’s most widely used system, the Peak was specifically designed to make facility managers’ lives easier. This unit is widely used in classrooms, office spaces, waiting rooms, patient rooms, and residential settings.
Energy Conservation (IAQP)
Can be used for ASHRAE Standard 62.1 Indoor Air Quality Procedure (IAQP) for energy reduction or possible reduction of outdoor air through the use of recirculated and purified air, while maintaining all design compounds within the building under their design limits
Reliable Efficiency
Direct-drive variable speed, high-efficiency fan motor with single intake plenum provides increased system dependability and efficiency by eliminating drive coupling
Absolute Filtration
Provides particulate and chemical contaminant control primarily utilizing a 3-stage filtration system
Minimal Maintenance
Automatic and remote scheduling to reduce energy consumption by running unit during occupied times and optimize longevity of filters through the use of on-board sensors for accurate filter life estimation, rather than time-based filter change intervals
Supplementary Compliance
Compliance with ASHRAE Standard 241 through third-party bioaerosol testing and establishment of an Infection Risk Management Mode (IRMM)
- ASHRAE 241-2023 : Compliant System Categories: FU, WU
- UL Listed : File Number E518053
- CARB : Certified
- IEST-RP-CC007 : Certified 99.99% HEPA Filter
- Bioaerosol Testing : Available upon Request
- ELECTRICAL SPECIFICATIONS
- Operating Voltage : 110/120 VAC
- Motor : 115VAC, 50/60HZ, Ball Bearing, IP54 Rated UL
- Listed: File number E319742
- Wiring : 16AWG
- Connectors : Deutsch DT, IP68 Rated
