Atex - In-Situ Oxygen Analysers
The oxygen measurement enables the control of burner fuel/air ratios to ensure combustion efficiency and process safety. Fuji Electric O2 Analyser is adapted to be installed in hazardous areas and to withstand critical environments as:
Most popular related searches
in-situ oxygen analyzer
oxygen analyzer
probes transmitter
hazardous area
gas analysis
combustion performance
oxygen monitoring
flame arrester
process safety
oxygen monitoring control
- Refinery process heaters
- Petrochemical reactor furnaces
- Industrial large scale boilers

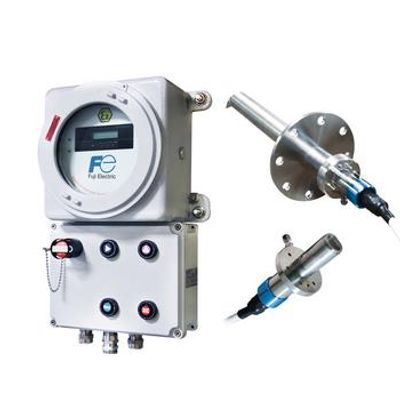

The in situ O2 Analyser includes the following parts:
- 1 probe type ZFKX
- 1 transmitter type ZKMX
- 1 guide tube
- 1 junction box + connection cable if Probe-Transmitter distance >2m
- Field-replaceable Flame-arrester
- Compact & Light Design
- Fast response (4–7 seconds)
- Excellent accuracy and reliability
- Remote electronics and calibration
- ATEX/IECEx Zone1 IIB+H2 T3 Gb certified probe
