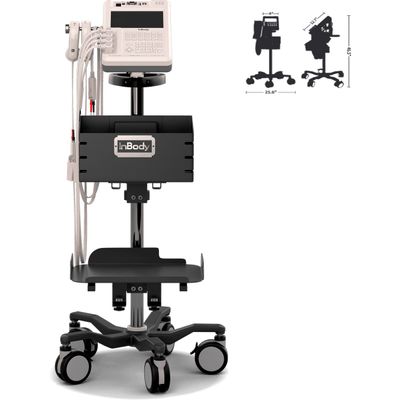

InBody - Model S10 -Body Water Analyzer
Designed for use with people who are immobile or have amputated limbs, the InBody S10 features attachable electrodes and swivel casters for accurate, convenient, and non-invasive body composition and body water analysis. Get double the outputs with standard data like Percent Body Fat and Skeletal Muscle Mass, plus a Result Sheet just for body water analysis and advanced metrics like Whole Body Phase Angle.
ADA Compliant
Measure body composition and body water while the examinee is laying down. Auto-calibrated, easy-to-use, and non-invasive, testing is simple and convenient—just attach the electrodes to the examinee.
No Empirical Estimations
No empirical estimations based on age, sex, ethnicity, or body type. Instead, Direct Segmental Multi-Frequency BIA technology measures body segments separately for an accurate analysis based on your unique body.
Comprehensive Outputs
Get vital body composition outputs for evaluating overall health and wellness and a specialized Result Sheet for body water analysis. Draw more insights from exclusive metrics like Visceral Fat Area and Whole Body Phase Angle, track progress, validate programs, and deliver actionable advice backed by research-grade data.
Portable Analysis
Move the InBody S10 on its swivel casters for convenient testing in different rooms in your facility. Thanks to a compact space-efficient design, you can easily position the device exactly where you need it.
Explore the InBody S10 Result Sheet
Every InBody Test will print out a full-page Result Sheet that details muscle, fat, and water and highlights specific areas to focus on.
Segmental Lean Analysis
Get an in-depth analysis of an individual’s lean body mass. Evaluate if an individual has a sufficient level of lean body mass in each segment of the body (arms, legs, and trunk) and spot any imbalances between the limbs. Go deeper by seeing the fluid balance in each limb to reveal swelling or retention.
Whole Body/ Segmental Phase Angle
Phase angle is a known indicator of cellular health, which reflects overall health. A higher phase angle indicates greater cell membrane integrity. Measure phase angle in each body segment to monitor cellular trends.
Frequencies
1, 5, 50, 250, 500, 1000 kHz
Test Mode
Medical Mode, Research Mode
Test Duration
90 seconds (Medical) 130 seconds (Research)
Weight Range
22-551 lbs
Age Range
3-99 years
Height Range
3 ft 1.4 in-7 ft 2.6 in
Equipment Weight
4.4 lbs
Dimensions Without Stand
12.7 x 8 x 2.1 ( L x W x H ) : in
With Stand
25.6 x 25.6 x 46.5 ( L x W x H ) : in
Warranty
1 Year Manufacturer’s Warranty
Compatible Printers
Laser/Inkjet PCL 3 or above and SPL
Measurements
30 impedance measurements, 6 frequencies at each of the 5 segments (Right Arm, Left Arm, Trunk, Right Leg, Left Leg)
Additional Features
LookinBody 120, Touchscreen
Database
100,000 results (if member ID is utilized)
Accessories
Body Composition Result Sheet, Body Water Result Sheet (Optional), USB Thumb Drive, Cart, External Battery, Carrying Case, InBody Tissue, Laser Printer, Poster
Standard Outputs
Weight, Total Body Water, Dry Lean Mass, Lean Body Mass, Body Fat Mass, Skeletal Muscle Mass, Body Mass Index, Percent Body Fat, Segmental Lean Analysis, Body Composition History, Body Water Composition History, Intracellular Water, Extracellular Water, ECW/TBW Analysis, Segmental Body Water Analysis, Segmental ECW/TBW Analysis
Additional Outputs
Body Fat-Lean Body Mass Control, Basal Metabolic Rate, Segmental Impedance at each Frequency, Visceral Fat Level, Visceral Fat Area, Segmental Fat Analysis, Segmental ICW Analysis, Segmental ECW Analysis, Leg Lean Mass, TBW/LBM, Reactance, Whole Body and Segmental Phase Angle, Skeletal Muscle Index
