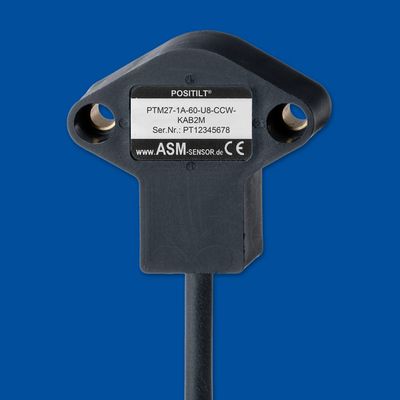

ASM positilt - Model PTM27 -Inclination Sensor
High accuracy inclination sensor Measurement range up to ±180° Single or dual axis measurement Resolution up to 0.001° Robust, compact plastic housing Protection class IP67.
- Output : Voltage 0.5 ... 10 V (on request)
- Voltage 0.5 ... 4.5 V ratiometric (on request)
- Voltage 0.5 ... 4,5 V
- Current 4 ... 20 mA, 3 wire (on request)
- CANopen
- SAE J1939
- Measurement range : ±5° ... 180° (selectable in 5° increments)
- Resolution : 0,005° (Measurement range ±180°)
- 0,001° (Measurement range ±5°)
- Linearity : up to 0.05° (±30°)
- up to 0.1° (±60°)
- up to 0.2° (±180°)
- Sensing device : Integrated MEMS device
- Housing material : Plastic
- Protection class : IP67
- Connection : Cable 0.3 m with connector M12, 5 pin
- Weight : approx. 20 g (without cable)
