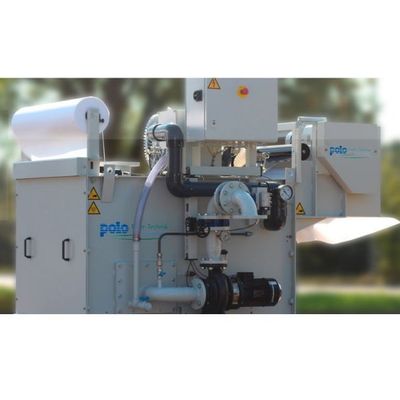

POLO - Model SBV -Inclined Bed Filter Vacuum
The POLO inclined bed filter SBV cleans many different liquids fully automatically. The well-known advantages of the POLO SB series have been completely incorporated here and expanded by vacuum technology. This combines the compact design with a high throughput capacity.
- Vacuum filter for low volume flows
- Correct separation of dirt/clean side
- Low fleece usage
- Compact design
- Compressed dirt cake, dry, stab-proof
- 2 different sizes
- Suitable for extremely thin fleeces
- Steel and stainless steel version available
Increased volume throughput
The SBV is equipped with an exhauster, which creates a negative pressure in the clean chamber. This significantly increases the flow rate; the filter cake builds up higher and serves as an additional “filter layer”, which increases the degree of purity of the filtration.
Design
The unit consists of a steel or stainless steel welded housing with drive and deflection shaft. The endless transport chain carrying the filter fleece forms an extremely deep filter trough. Advance is ensured by means of a gear motor. An exhauster for generating the negative pressure and a discharge pump are mounted and tubed on and/or at the filter. The control functions, triggered by float switches, are carried out by an external or integrated electrical control box. The standard version is made of steel. A medium contact version in stainless steel materials is also available.
Function
The dirty liquid flows into the dirt chamber of the filter through an inlet distributor that avoids turbulence. The exhauster draws air and thus liquid through the fleece into the clean chamber of the filter, thus creating a negative pressure. This negative pressure increases the flow rate, allows the filter cake to build up higher and, as air is drawn through this filter cake, produces a dry stab-proof discharge. The higher-building filter cake provides a high-quality filter layer that improves the degree of purity.
The filter discharge pump directs the cleaned liquid into a clean tank. At a maximum level in the dirt chamber, a fleece pre-stroke is triggered. At the same time, the used fleece is conveyed into the dirt container and a fresh fleece is drawn in. The filtering process does not have to be interrupted for this operation; no buffer tank is necessary.
Due to the short fleece pre-strokes, only a very small part of the filter surface is renewed, so that the built-up filter cake remains largely intact as a “precoat” thus increasing the filter fineness.
A hose seal, resistant to all commercially available cooling lubricants, reliably isolates the dirt chamber from the clean side.
A fleece shortage switch signals that the fleece roll needs to be replaced.
Options
- Emergency overflow channel
- Dirt box
- Fleece separating device that substantially separates the filter cake from the fleece and winds up the fleece
- Can be converted to an endless belt filter at a later date
