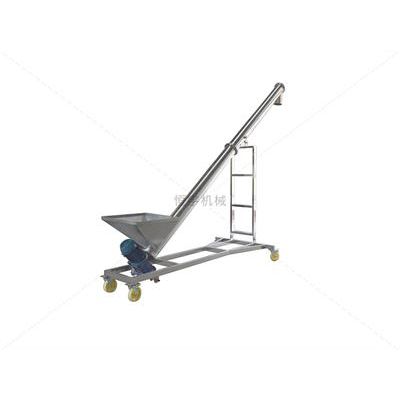

Inclined Tubular Screw Conveyor
The tubular screw conveyor is generally used for the oblique angle conveying. The tubular screw conveyor uses a rotating screw to transport the conveyed material along the fixed casing, and the head and tail bearings are moved to the shell. in vitro. Tubular screw conveyors are not suitable for conveying materials that are prone to deterioration, viscous, and agglomerate. These materials will adhere to the spiral during transport and will rotate without moving forward or forming material at the suspension bearing. The plug is blocked and the screw conveyor is not working properly.
- Large carrying capacity, safe and reliable.
- Strong adaptability, convenient installation and maintenance, and long service life.
- The whole machine is small in volume and high in speed, ensuring rapid and uniform transportation.
- There is a cleaning device at the discharge end, the machine has low noise and strong adaptability, and the position of the inlet and outlet is flexible.
- The sealing is good, the outer shell is made of seamless steel pipe, the ends are flanged and connected to each other, and the rigidity is good.
The continuously rotating spiral blade pushes the material falling on its surface to make a linear motion.
The screw conveyor uses the centrifugal force generated by the spiral body at a higher rotational speed in the vertical circular shell, and overcomes the friction between the material and the spiral surface by the friction of the material and the outer casing, and the component of the spiral sliding downward caused by the self-weight of the material. a conveying machine that lifts the material upwards.
