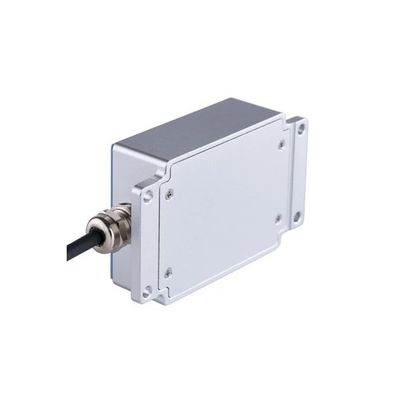

SkyMEMS - Model INC1000M -Inclinometer Module

SHARE

INC1000M 0.01° China ModBus Inclinometer With Temp. Compensation from manufacturer is high performance single / dual axis RS485 Modbus inclinometer sensor with temperature compensation, and the temperature coefficient (-20~50 °C) is as low as ±0.0004º/ºC, it enjoys high accuracy: ±0.01° (room temperature) and the measurement range is from ±5° to ±15°, and the inclinometer adopts big brand components and material, and the cable are qualified for continuous outdoor use, and it is manufactured and calibrated in our own factory to guarantee performance and the real accuracy to the stated specification. Adopting SkyMEMS proprietary algorithms, which reduce the non-linearity, cross errors, quadrantal error and installation error, the inclinometer enjoys high reliability and survivability in harsh environment and the working temperature is -40~85°C.

Most popular related searches
inclinometer sensor
training tracking
inclinometer
building monitoring
dam monitoring
structural monitoring
level gauge
building structural monitoring
dual axis inclinometer
temperature monitoring

High performance RS485 Modbus inclinometer sensor with temperature compensation, widely used in high building monitoring, etc.

  • High Accuracy: ±0.01° (room temperature)
  • Single/Dual Axis Measurement, Range from ±5° to ±15°
  • Temperature Coefficient (-20~50 °C): ±0.0008º/ºC
  • Output interface: RS485, Modbus Protocol
  • Wide Voltage Input: 5~36V, IP67 Sealed
  • Compact and Lightweight: 93.8×55.5×26 mm, 250grams
  • Wide Working Temperature: -40°C~+85°C
  • OEM, ODM Supported

INC1000M 0.01° ModBus Inclinometer With Temp. Compensation from China factory is a cost-effective high-performance MEMS-based inclinometer, which has been widely used in the following fields: – Heavy Engineering Machinery – Track Gauge Instrument – High Building / Tower Monitoring – Power / Communication Tower Monitoring – Overhead Working Truck – Bridge / Dam Monitoring – High Accuracy Medical Platform

INC1000M series inclinometer has been widely used in heavy engineering machinery

SkyMEMS is dedicated in the design and manufacture of inclinometer sensors for measuring angles and detecting level. We have developed different accuracy series of mechanical and electronic inclinometers specifically for use in construction machinery and engineering machinery. All of our products are designed and manufactured by SkyMEMS to ensure quality and reliability. With bulk production, our prices are extremely competitive. And we also can provide custom service for customers to satisfy special requirements.
INC1000M series inclinometer has been widely used in train track gauge leveling
Railway track geometry quality has a decisive influence on the dynamic performance of the vehicle, and railway operating safety and passenger comfort depend to a large extent on the smoothness of the railway track, especially for high-speed railways. Our inclinometer has been widely used in the train track gauge leveling applications. SkyMEMS is dedicated in the design and manufacture of inclinometer sensors for measuring angles and have developed different series of inclinometers with different output interfaces. We have many types of inclinometers with competitive price and performance levels suited for train track gauge leveling applications.
INC1000M series inclinometer has been widely used in high building/tower monitoring
Nowadays, the construction of civil engineering projects, such as skyscrapers and towers, is continuing to increase in number and size. And SkyMEMS inclinometers are widely used to detect a variation of angle within structures. SkyMEMS is dedicated in the design and manufacture of inclinometer sensors for measuring angles and have developed different series of inclinometers with different output interfaces. SkyMEMS super high accurate INC1000M inclinometers are considered one of the most common sensors to determine the inclination of buildings. Automatic permanent structural monitoring allows continuous measurements.
