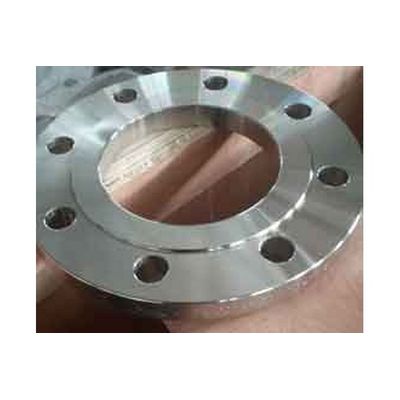

REGAL - Model 600 -Inconel Flanges

SHARE

Inconel 600 Flanges are made up of a type of nickel chromium alloy. There are different grades of nickel chromium alloys each differ with the chemical compositions. The difference in the chemical compositions make the differences in the mechanical and physical properties as well. The Alloy 600 Weld Neck Flange, slip on flange, socket weld flange and other types are available. The flange types vary in the face type as well. The flanges can be of flat face, raised face or ring type joint. These flanges belong to the ASTM SB564 specification.

Most popular related searches
pipe flange
flaw detection
blasting machine
hydrostatic test
hydrostatic testing
chromium
iron and manganese
raw material testing
AWWA standard
manganese

The Astm B564 Uns N06600 Inconel 600 Flanges come in the range of ½ inches to 60 inches in size. The dimensions of the flanges range according to the standards such as ANSI, ASME, DIN and all other international standards. Depending on the dimensions, the pressure capacities vary as well. The Asme Sb 564 N06600 Slip On Flanges can vary in pressure rating from class 150 to class2500. There are PN6 through PN64 pressure numbers corresponding to these classes and pressure capacities. The Nickel Alloy 600 Flanges are made up of 72% nickel, 14% chromium minimum with carbon, manganese, silicon, copper and iron in the composition. The material has 655MPa minimum tensile strength 310MPa minimum yield strength and 40% elongation ratio. The Alloy 600 Weld Neck Flange and others can be used under high temperatures and highly corrosive elements. The material has 1413 degrees Celsius melting point and has higher resistance against acids and reducing agents.

  • Size Chart : 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
  • Standards : API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092
  • JIS : 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
  • UNI : 6Bar 10Bar 16Bar 25Bar 40Bar
  • Pressure Rating ANSI : 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
  • Pressure Calculation in DIN : 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
  • EN : 6Bar 10Bar 16Bar 25Bar 40Bar
  • Coating : Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent
  • Production technique :
  • Forged, Heat treated and machined
  • Connect Type/ Flange Face Type : Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
  • Equipment : Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc
  • Origin : Indian / West Europe / Japan / USA / Korean
  • Special design :
    • As per your drawing
    • AS, ANSI, BS, DIN and JIS
    • 15 NB (1/2") to 200 NB (8")
    • Equal and Reducing Configurations
  • Test : Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector
  • Most common types : Forged / Threaded / Screwed / Plate
  • Test Certificates : EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
  • Manufacturer of :
  • ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
  • B.S: BS4504 , BS3293, BS1560, BS10
  • German (DIN)
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • British standard (BS)
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
  • Uses & application :
  • Nuclear power (mostly seamless).
  • Bitumen upgraders.
  • Petrochemicals and acids.
  • Heavy oil refineries.
