INDAG - Model DLM/H -Homogenizer Food Used for Emulsifying, Dispersing and Shearing
INDAG homogenizer type DLM/H is used for effective emulsifying, dispersing, shearing and mixing of fluids and solids. Applications are: for production of cosmetics oil, water and emulsifier are combined to stable emulsion. DLM/H produces mayonnaise from oil, vinegar solution and egg. Droplet sizes of smaller 1 µm are achieved by rotor tip speeds of >20 m/s and smallest clearance. Another application is mixing of phosphoric acid or citric acid into vegetable oil for degumming. With DLM/H homogenizer solids in liquids like onion pieces or corn pieces are sheared to very small pieces.
- Very good self-cleaning during CIP-cleaning
- Efficient introduction of mixing energy
- Modular design of homogenizer
- Hygienic design
- Execution with double jacket and further connections possible

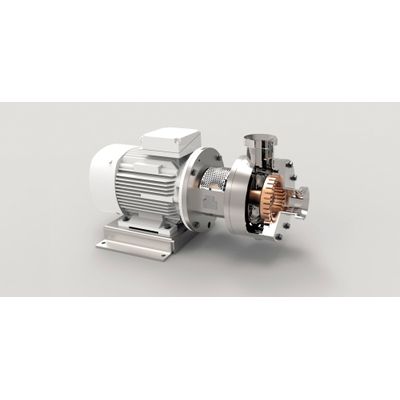

INDAG homogenizer type DLM/H consists of a rotor and stator equipped with axial positioned mixing/shearing elements. Mixing energy is introduced efficiently into product. It is possible (as an option) to heat or cool stator. INDAG mixer DLM/H is designed in a modular way. DLM/H is offered in a compact design (KB) and a foundation plate design (LB). Compact design means that rotor is supported by drive shaft of motor. Foundation plate design means that rotor is supported by its own bearing block. An own bearing block allows smaller clearance between rotor and stator mixing elements and therefore even more intensive shearing effect. Homogenizer DLM/H with own bearing block can be equipped with every commercially available motor. DLM/H can be equipped with single acting mechanical seal or double acting mechanical seal.
Positioning
Horizontal or vertical position of mixer is possible
Pressure levels
6 bar, 10 bar, 16 bar, 25 bar, 40 bar
Materials
1.4301 (AISI 304), 1.4404 (AISI 316 L)
Seals
Single acting mechanical seal; double acting mechanical seal; even in aseptic execution
Connections
Dairy connections according to DIN 11851, DIN 11864, Tri Clamp, SMS
Rotational speed
1,500 rpm to 6,000 rpm
Capacities
50 l/h to 120,000 l/h
Temperatures
0 °C to 200 °C
Viskosities
1 mPas to 500,000 mPas
