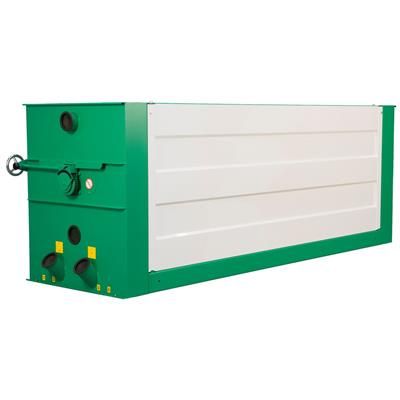

Westrup - Model TR 4-25 T/H -Indented Cylinder
FromWestrup ApS
The TR indented cylinder in modular construction offers the possibility of building more units together to meet specific grading and capacity requirements. The TR indented cylinder handles separation of short product, separation of long product, or separation of short + long products according to the cylinder combinationMost popular related searches
- Inlet.
- Inner trough, which is manually adjustable from the outside.
- Rotating exchangeable mantle.
- Cylinder with agitator (short product), or agitator with screw (splitting), or outlet brake (long product).
- Outlet for long fraction and outlet for short fraction at the outlet end of the machine.
- Holes for manual sampling.
- Safety and access cover on left and right hand side of the machine.
- Lifting handles to assist mantle change (not for TR-1240/-1250).
- Prepared for connection of external aspiration.
- Drive and motor.
- Mantle, case - hardened or teflon coated inside
- Frequency converter (supplied separately for customer installation)
- Motorized trough adjustment
- Built - in pipe system for compressed air cleaning
- Top cover
- Bottom mesh plate for safety
- Inspection hatch in the mantle (inlet end or outlet end)
