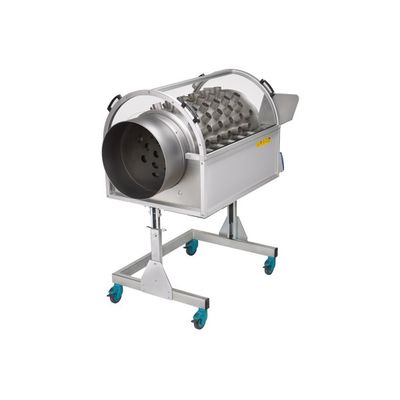

MB Conveyors - Model SM -Independent Separator With Perforated Drum
FromMB Conveyors srl
This model is tailored to suit the customer’s requirements and is designed for a specific product/sprue. Rotating drum in AISI 304 stainless steel sheet. MB Speed Control panel for controlling the rotation speed. Safety guard for the rotating drum. The diameter, positions of the holes and the optional equipment required are specially designed to suit the characteristics of the product to be separated.
Most popular related searches
- Separator with its own MB SPEED CONTROL panel for adjusting the rotation speed of the drum; adjustment range available: min. 4 turns/min, max. 20 turns/min
- Drum bearing frame supported by two threaded rods allowing drum tilt to be adjusted on both sides, while adjustment in height is facilitated by two gas pumps installed on the lower base
- Safety protection for rotary drum rotation; safety ensured thanks to a dedicated micro-switch which inhibits rotation if drum is opened
- Separator with inlet and outlet chute in AISI 304 stainless steel sheet
- Motor connection voltage: 220 V / 50 Hz single-phase
- Recommended optionals:
- sprue anti-attachment tubes
- flow regulator for improved handling, allowing the product to remain for a longer time in the drum
