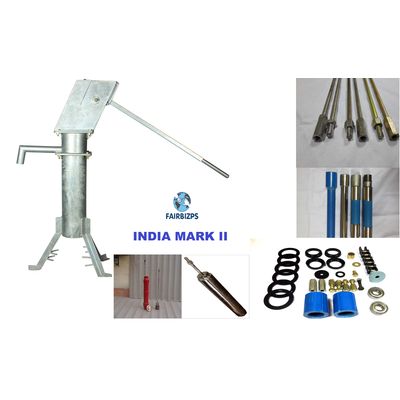

India Mark ||
FromFAIRBIZPS
APPLICATION DATA: Minimum bore size: 100 mm., Internal dia. of Cylinder: 63.5 mm, Stroke length: 125±4 mm., Average discharge per stroke: 16 liters per minute of 40 strokes., Operating depth (approx.): up to 45 meters
Most popular related searches
- The above-ground mechanism is fabricated from welded steel plates and sections for strength, and hot-dip galvanized for corrosion resistance.
- A chain and quadrant mechanism of the pump handle provides easy and accurate alignment of the connecting rod.
- The handle bar has a high mechanical advantage and is designed to counter balance the weight of the connecting rods to reduce the pumping effort required by the user.
- A unique pivot assembly (sealed ball bearings for the handle on a stainless steel axle) adds to the ease of operation and lower maintenance needs.
- 125 mm stroke length of the handle provides a water discharge of 15 liters per minute per 40 strokes with the cylinder installed in the range of the 15 m to 45 m below-ground level.
- The water tank assembly has an appropriate coupler to suit 32 mm NB medium class
