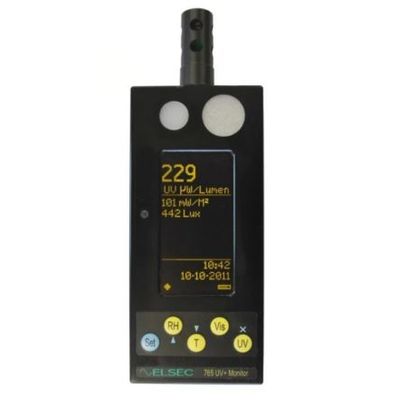

PDS Elsec - Model 765 Series -Indoor Environmental Monitor
The 765 is the most popular, measuring ultraviolet, visible light, relative humidity, and temperature. Optional data logging functionality. The Elsec 765 Series provides accurate indoor environmental monitoring and is a valuable tool in the conservation of museum objects, valuable documents, artwork and buildings. The 765 measures and displays visible light (Lux or Foot-candles), UV light (mW/M² or µW/lumen), temperature (°C or °F), and humidity (%RH). This is the world standard instrument for museums, art galleries conservators or any application requiring a controlled environment.
The 765C (with logging) is the same as 765 with data logging capacity for over 70,000 readings of all 4 parameters. No special software is required, logged information is stored on an internal USB Flash disc and the data can be downloaded onto a PC and viewed with any spreadsheet (Excel etc). A free application (RView) is also available for download that displays the data as a zoomable graph that can be saved as an image for inclusion in documents and/or printed.
-
Monitors the four parameters of significant concern in conservation and replaces the need to have multiple monitoring tools
-
Optional data logging function enables up to 10,000 readings to be stored and downloaded to PC
-
Replaces 4 separate instruments:
-
Ultra Violet (UV)
-
Visible light (Lux or Foot-candles)
-
% Relative humidity
-
Temperature (°C or °F)
-
-
Easy one-handed operation
-
Solid metal construction
-
Large, easy to read display
-
Data-logging function (765C only)
- Measurements: Ultra-violet (UV) light, visible light, relative humidity, temperature
- Battery Life: Approx 25 hours or 3000 readings at 30 seconds per reading
- Data logging (765C)
- Output: 128×64 OLED display with automatic brightness control; USB interface for data download to PC (765C only)
