Federal Signal - Model UVIC-B -Indoor Mass Notification System
The Federal Signal UltraVoice Integrated Controller, Model UVIC-B, is a Mass Notification panel designed to deliver clean, clear, amplified audio to a network of speakers (sold separately). The UltraVoice Integrated Controller can be used in a standalone application or networked with an outdoor Mass Notification system. The controller provides high quality broadcast of live or pre-recorded voice and tones. The UVIC-B continuously monitors speaker circuits with automatic notification of system failures.
Most popular related searches

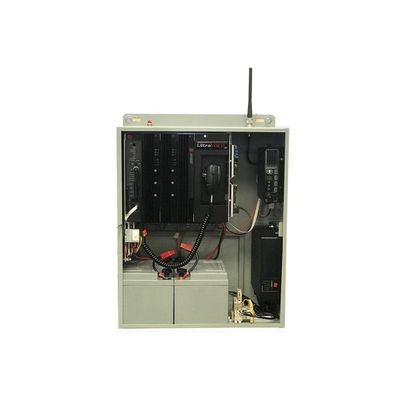

The UVIC-B is housed in an indoor NEMA1 style cabinet, with provisions for up to two 400 watt amplifiers (UV400 sold separately). Each controller requires 120 or 240 VAC and contains two sealed lead-acid batteries, providing over 30 minutes of operation in the event power has been lost. The UVIC-B can be activated via radio (UHF/VHF/P25, cellular or IP (fiber/networked) from a remote location and can also interface a UVLOC-B for remote activation. This indoor controller has up to 8 preset activation functions, and Live PA broadcasts with the addition of a Local microphone
(sold separate).
The UVLOC-B is a self-contained, lockable enclosure with supervised communications to the UVIC-B. Live Public Address is also available. Activation of pre-recorded messages can be done locally, via the UVLOC-B, via Commander or via an SS2000+. An SS2000+ is a system wide activation point which is typically equipped with a base station radio (approved radio license required at time of order).
The UltraVoice Integrated controller can be activated, managed, set-up and monitored using the Federal Signal Commander® Software which allows simple “point and click” activation and indication of alarms or fault conditions. When used with Commander Assist, the Commander Control Software provides an unique and easy-to-use creation of site specific, alert specific alerting messages.
A UVIC-B can be used to power a complete line of indoor or outdoor speakers. Federal Signal’s outdoor speakers include the DSA series, MOD1004B or MOD2008B. This controller can also be used with the AM300 and EN series or any 25/70V speakers when equipped with the optional UVADM. For end-of-line speaker monitoring the speakers require use of capacitively coupled devices.
The UVIC-B also incorporates 4 stand-alone relays for activation of external devices, the UV-ARM is not supported with this new system.
Ultravoice units may be equipped with a programmable RF receiver for remote control using MSK or DTMF protocols. Federal Commander Windows based software provides command and control for UltraVoice twoway products.
- Operating Temperature : -22°F to 149°F / -30°C to 65°C
- Input Voltage : 120 or 240VAC, 50/60 Hz Single-phase
- Input Current : 5A AC, 45A DC Max
- Internal Operating Voltage : 24 VDC
- Continuous Signaling Time : 30 minutes
- Relay Contact Rating : 8A at 24 Vdc or 250 Vac
- Dimensions H x W x D : 27” x 20.3” x 10.7” (685.5 mm x 515.62 mm x 271.78 mm)
- Net Weight: (no amplifiers) : 64.55 lbs 29.28 kg
- Shipping Weight : 200 lbs 90.7 kg
