Terraplus - Model KT-20 -Induced Polarization/Resistivity Module

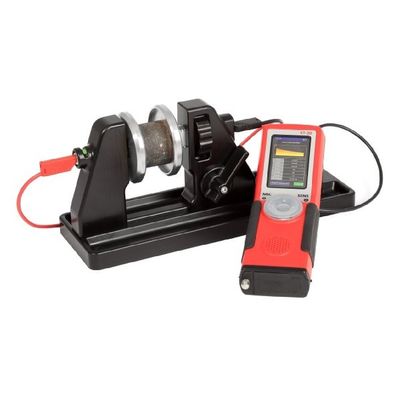

Physical property measurements of rock samples, such as induced polarization (IP), resistivity, magnetic susceptibility, conductivity, and density, can be significant tools in improving geophysical survey programs as well as post-processing 3D interpretation. The KT-20 Physical Property Measuring System provides magnetic susceptibility, conductivity and density readings of a geological sample. The IP/Resistivity module, consisting of a sensor (includes Tx-Rx electronics) and sample holder, adds these Measurement Capabilities To The KT-20 Ecosystem.
The KT-20 IP can be used as a dedicated Galvanic IP/resistivity meter, or integrated together with an existing KT-20 magnetic susceptibility and conductivity system.
The IP-T10 reference pad is available as an option for users who wish to verify or re-calibrate their KT-20 IP.
The KT-20 IP is available in two models: Standard (S) and Pro (P).

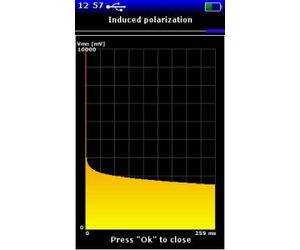

- Real-time decay curve on colour display (S & P)
- 20 IP windows (S) and up to 16,000 data points for decay curve analysis (P)
- User programmable windows (P)
- Total Tau (S), 3 Tau (P), and 3 Constant x (P)
- M ip calculation with first reading at 2 ms (P)
- Raw data available (P)
Operators can also choose between two sample holder sizes, Small and Large, dependent on the length and width of the cores/samples being measured.
