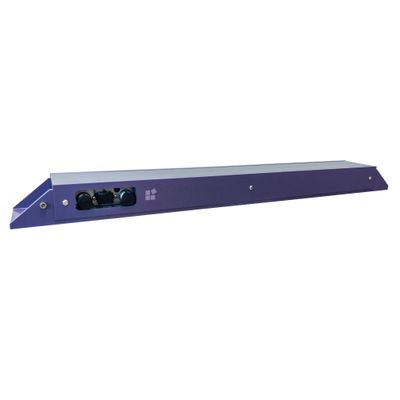

EVK ABAS ThinLine - Inductive Metal Scanner for Use in Sensor-Based Sorting Machine

EVK ABAS ThinLine (TL) is an inductive metal scanner for use in sensor-based sorting machines for detection and sorting of metals. The sensor can be mounted under a conveyer belt and delivers spatially resolved information of conductive material in the material flow. EVK ABAS TL is available in standard working widths of 600mm, 1000mm, 1200mm, 1600mm, 1800mm, 2000mm, 2400, and 3000mm and supports most of the common working widths of sorting machines. Designed as an easy to install device, EVK ABAS TL is equipped with a standardized GigE Vision industrial interface. Output data can be fed directly into an EVK proprietary I/O system which drives actuators of the sorting system. As a result, sorting machine builders can easily integrate ABAS TL in their sorting machine lines, without the need to develop any specific interfaces to their machines.

Most popular related searches

sensor-based sorting system

Detection of ferrous and non-ferrous metal particles
Available for working widths from 600mm to 3000mm
GigE Vision / GEN<I>CAM Interface
EVK ABAS TL can be combined with the EVK proprietary I/O module for driving ejection units
Rugged design of housing and components

Recuperation and extraction of metals in real-time
Supports commonly used machine working dimensions
Supports standard interfaces for fast integration
Easy and fast integration for sorting applications
Designed for sustainable use in harsh environments

Recuperation of metals in automotive scrap
Recycling and recuperation of metals in bulk material
Recuperation and elimination of metals in polymer sorting
Recuperation and elimination of metals in glass sorting
Foreign body detection in wood
Recycling of C&D waste

EVK ABAS ThinLine - Inductive Metal Scanner for Use in Sensor-Based Sorting Machine

Key Features

Benefit:

Typcial Applications

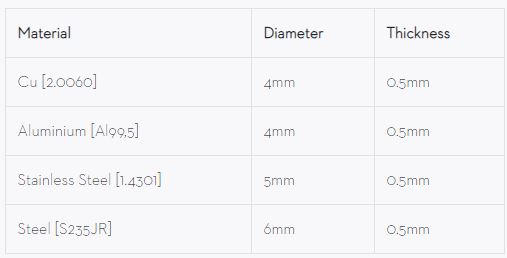

Sensitivity Characterization
