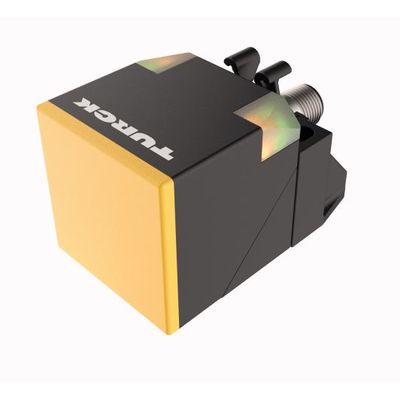

Hans Turck - Model NI40UE-QV40-VP6X2-H1141 -Inductive Sensor
Inductive Sensor. With Extended Switching Distance. Order number: 100018883. Rectangular, height 40 mm. Plastic, PBT‐GF30‐V0. High luminance corner LEDs. Optimum view on supply voltage and switching state from any position. Factor 1 for all metals. Increased switching distance. Protection class IP68. Resistant to magnetic fields. DC 4-wire, 10…30 VDC. Changeover contact, PNP output. M12 x 1 male connector.
Most popular related searches
General data
- EAN: 4047101524536
- eCl@ss-Code (V5.1.4):: 27270101 -/- Inductive proximity switch
- Customs tariff number: 85365019000
- Country of origin: DE
- Weight: 107 g
Technical Data
- Design: Rectangular
- Construction size: 65 x 40 x 40 mm, QV40
- Rated switching distance: 40 mm
- Mounting conditions: Non-flush
- Operating voltage: 10…30 VDC
- Output function: Complementary contact, PNP
- Switching frequency: 0.250 kHz
- Electrical connection: Connector, M12 × 1
- Housing material: Plastic, PBT-GF30-V0, Black
- Ambient temperature: -30…+85 °C
- Protection class: IP68
- Special features: uprox+, Factor 1, Resistant to magnetic fields
