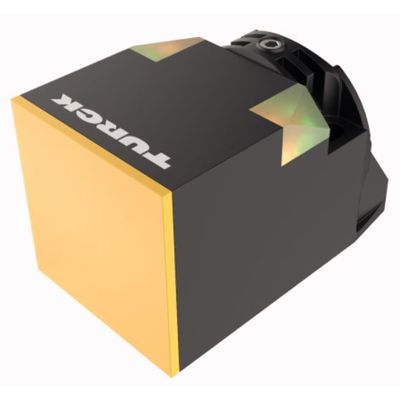

Turck - Model NI40C-CK40-VP6X2-H1141 -Inductive Sensor for Detecting Carbon Materials
FromTurck Inc.
Ident. no.: 100015716. Rectangular, height 40 mm. Variable orientation of active face in 5 directions. Plastic, PBT-GF30-V0. High luminance corner LEDs. Optimum view on supply voltage and switching state from any position.
Most popular related searches
- Carbon detection
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 4-wire, 10…30 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
General data
- EAN: 4047101519099
- eCl@ss-Code (V5.1.4):: 27270101 -/- Inductive proximity switch
- Customs tariff number: 85365019900
- Country of origin: DE
- Weight: 122 g
Technical Data
- Design: Rectangular
- Construction size: 65 x 40 x 40 mm, CK40
- Rated switching distance: 40 mm
- Mounting: Non-flush
- Operating voltage: 10…30 VDC
- Output function: Complementary contact, PNP
- Switching frequency: 0.250 kHz
- Electrical connection: Connector, M12 × 1
- Housing material: Plastic, PBT-GF20-V0, Black
- Ambient temperature: 0…+100 °C
- Protection class: IP68
- Special features: Carbon detection
