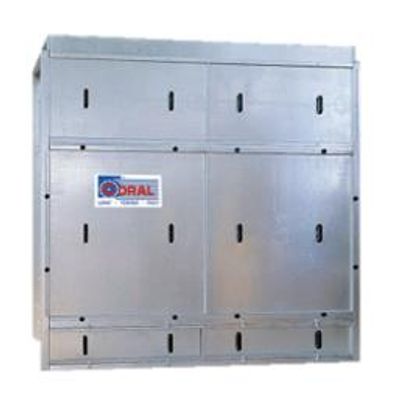

Lev-Co - Model VOC2.0 - 17,066 CFM -08-006 -Industrial Air Cleaner Units

VOC industrial air cleaner has the ability to store large amounts of adsorption media (Eg: activated carbon) is where this solution stands out.

The VOC2.0 air purifier allows for long DWELL times as required in many applications. Also can be equipped with various adsorption media such as Activated Carbon, Potassium Permanganate, Zeolite, Porocel, Activated Bauxite, activated alumina and others.

This extended dwell time coupled with a wide range of adsorbents helps you design an air purifier VOC solution that is precise and complies with most air quality regulations.

Main Options Include:

• Inlet Plenums
• Casters
• Hose with temp range up to 300°F (150°C)

NB: Lev-co strongly recommends using preventative maintenance and air quality assurance accessories such as Pressure gauges, Air quality monitors, Run-timers/counters, etc. Please review these options with your Lev-co SME for more information.

• Galvanized steel filter housing:Can be epoxy painted upon request.
• Pre-filtering section:The Pre-filtering section traps solid contaminants such as pigments, atmosphere dust, etc. and protects the Adsorption Media from becoming prematurely saturated. The pre-filters are easily exchanged through front access panels.
• Main adsorption filter section:The Main filter section houses the Gas-Phase Adsorption media. These gaseous emissions are adsorbed by the media, which is stored in re-fillable filter modules.
• Fan section:The fan section comprises a double inlet belt-driven fan that provides the required flow and pressure needed to capture, convey, and draw the gases through the DEEP BED filter media.

The VOC2.0 - the ideal air purifier to remove VOCs

• Large Adsorption capacity --> Longer dwell times
• Wide range of units --> Ability to select the precise unit for the application
• Pre-filters with the large surface area --> Keeps the adsorption media clean, more efficient and lasting longer
• High static pressures --> Ability to overcome friction losses in LEV ducted systems
• 3 3/32" ( 80mm) Deep Bed of Carbon --> Deeper than typical "V" banks
• Refillable modules --> low cost / non-proprietary replacement media
• Compact Design & High flowrate design--> Saves on floor space
• 0.18 S Minimum contact time --> high degree of adsorption efficiency and VOC removal

Top 5 contaminants/processes/applications:

• Organic Based Vapours (VOC`s)
• Body odour (Fitness clubs, Change Rooms, Bathrooms)
• Paint Fumes (Spray Balms)
• Art Supplies
• Cannabis Odour

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

VOC2.0-5600

VOC2.0 5590 CFM (9500 M3/H) max flow rate. Comes standard with the following :

• 6 Prefilters
• 6 refillable media holders
• 617 lbs (280 kgs) Activated carbon filter for painting.
• 4hp (3KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 5590 cfm (9500 m³/h) max flow rate.
• 71 dBA

VOC2.0-7000

VOC2.0 7062 CFM (12000 M3/H) max flow rate. Comes standard with the following :

• 6 Prefilters
• 6 refillable media holders
• 617 lbs (280 kgs) Activated carbon filter for painting.
• 5.4hp (4KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 7062 cfm (12000 m³/h) max flow rate.
• 71 dBA

VOC2.0-9400

VOC2.0 9416 CFM (16000 M3/H) max flow rate. Comes standard with the following :

• 8 Prefilters
• 8 refillable media holders
• 838 lbs (380 kgs) Activated carbon filter for painting.
• 7.4hp (5.5KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 9416 cfm (16000 m³/h) max flow rate.
• 71 dBA

VOC2.0-11500

VOC2.0 11475 CFM (19500 M3/H) max flow rate. Comes standard with the following :

• 8 Prefilters
• 8 refillable media holders
• 838 lbs (380 kgs) Activated carbon filter for painting.
• 10.1hp (7.5KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 11475 cfm (19500 m³/h) max flow rate.
• 71 dBA

VOC2.0-13000

VOC2.0 12947 CFM (22000 M3/H) max flow rate. Comes standard with the following :

• 10 Prefilters
• 10 refillable media holders
• 1036 lbs (470 kgs) Activated carbon filter for painting.
• 12.7hp (9.5KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 12947 cfm (22000 m³/h) max flow rate.
• 73 dBA

VOC2.0-17000

VOC2.0 17066 CFM (29000 M3/H) max flow rate. Comes standard with the following :

• 10 Prefilters
• 10 refillable media holders
• 1036 lbs (470 kgs) Activated carbon filter for painting.
• 14.8hp (11KW) TEFC premium & VFD duty motor, 3490rpm
• 208-230-460V/3/60. or 575V/3/60
• Fan 17066 cfm (29000 m³/h) max flow rate.
• 73 dBA

• Inlet Plenum Option
• Caster Options
• Hose with temp range up to 300°F (150°C)
• Sound Attenuation
