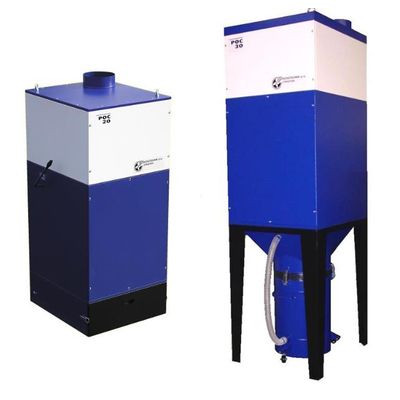

Vzduchotechnik - Model POC 14/20/30 -Industrial Air Filtration System
Industrial air filtering units POC 14/20/30 are designed for industrial heavy around-the-clock use with very simple and economical maintains. Industrial Air Filtering Systems for: Welding operations, surface grinding and metal cutting, dust generating processes, mist and vapor collection, industrial grinding operations, fiberglass sanding & deburring, CNC milling, EDM milling, powder mixing and much more.
The POC series from 14 to 30 systems are variable and ready to customize solution with suction capacity ranging from 1400m3/h to 3000m3/h within a pressure of 1000 to 2500 Pa.
POC 14/20/30 air filtration units are assembled from parts:
- dust chamber (Z)
- filter chamber with the regenerating mechanism (F)
- fan chamber (V)
- exhauster expiratory housing (K)
- housing of the II. degree filtration (D) (additional filter not included in standard unit set)
According to the type of pollution dusts, their amount, demands and dimensions, placement and difficultness of the service, the costumer can choose himself the correct and convenient arrangement of the exhauster.
