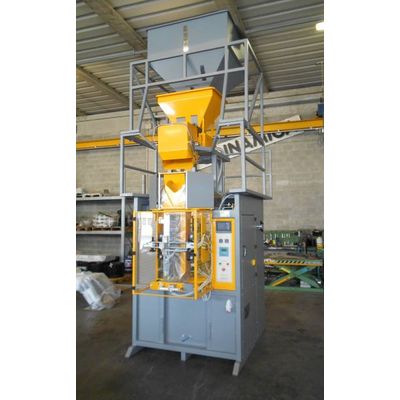

Miller Mac - Model PMM 1500 -Industrial Bagging Machine with Weighing Vessel and Dust Suction Outlet
FromMiller Mac srls
Structure that old the weighing vessel with sheet bent, welded together and inspections hatchers removable. All is painted. Outlet for dust suction. Discharge hopper and fitting between weighing and bagging machine complete with base plate and reinforcements, built in bent painted sheet and countered to facilitate the scrolling of the product.
Most popular related searches
HOPPER FOR PRODUCT RECEIVING:
- net weight scale realized in bent sheet, painted in polyurethan paint with high resistance.
- Electronic scale synchronized with PLC.
REEL UNWINDING SYSTEM COMPOSED OF:
- Motorized paster.
- Sensor for detection of the film.
- Compensation device of the film.
- Centring of the film on the forming tube motorized.
- Locking system of the reel through an hollow shaft and two tightening cones.
- Conveyor belt with flat chain complete with gearbox and three phase motor for output of the bag.
