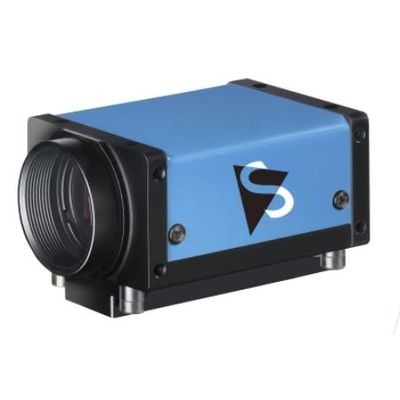

Imaging-Source - Model DMK 38UX255 -Industrial Camera
38U Series Monochrome Industrial Camera. USB 3.1 Interface. 1 inch Sony CMOS Pregius IMX255 Sensor. 4,096×2,160 (8.8 MP), up to 42 fps. Pixel Size: H: 3.45 µm, V: 3.45 µm. Global Shutter. Trigger and I/O Inputs. Only 29×44×60 mm.
Most popular related searches
General Behavior
- Dynamic Range: 12 bit
- Resolution: 4,096×2,160 (8.8 MP)
- Frame Rate: 42 fps
- Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX255
- Shutter: Global
- Format: 1 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: C (CS optional)
Interface (Electrical)
- Interface: USB 3.1
- Supply Voltage: 4.75 VDC to 5.25 VDC
- Current Consumption: Approx. 810 mA @ 5 VDC
- Auto-Iris Control:
- Trigger:
- I/O:
Interface (Mechanical)
- Dimensions: H: 29 mm, W: 44 mm, L: 60 mm
- Mass: 110 g
Adjustments
- Shutter: 2 µs to 4 s
- Gain: 0 dB to 48 dB
Environmental
- Temperature (Operating): -5 °C to 45 °C
- Temperature (Storage): -20 °C to 60 °C
- Humidity (Operating): 20 % to 80 % (non-condensing)
- Humidity (Storage): 20 % to 95 % (non-condensing)
