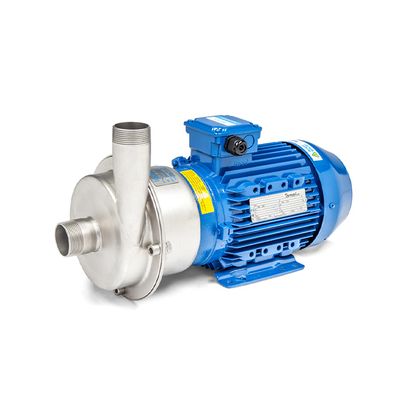

Tapflo Gulf - Industrial Centrifugal Pump for Versatile Fluid Handling
The Industrial Centrifugal Pump from Tapflo Gulf is engineered to meet diverse industrial applications, ensuring exceptional corrosion resistance and robust performance in harsh environments. Constructed from Glass Blasted Stainless Steel AISI 316L, it supports the transfer of viscous fluids across various processes, including pressure boosting and tank cleaning. Recognized for its ATEX compliance, the pump is particularly suited for high-temperature and flammable fluid applications, with the ability to handle temperatures up to 90°C in standard models, and customizable to endure up to 180°C. Its design includes a safety feature that directs fluid to the floor in case of seal failure, minimizing spark risk. The high performance model reaches a maximum flow rate of 132m³/hr and a maximum head of 80m, designed with a material composition that guarantees reliability and endurance for critical industrial processes.
Our Industrial Centrifugal Pump is a versatile solution offering superior corrosion resistance. This ATEX available pump, crafted from Glass Blasted Stainless Steel AISI 316L excels in handling viscous fluids in various applications, from pressure boosting to tank cleaning. For applications requiring higher temperatures, the Long-Coupled Centrifugal Pump design is capable of handling fluids up to 90°C in standard configurations, however it can be customised to handle temperatures up to 180°C. This makes it an ideal choice for handling highly flammable fluids in harsh ATEX zones. Additionally, in the event of a mechanical seal failure, the design ensures that the liquids are directed to the floor rather than leaking onto the motor, reducing the risk of sparks.
Typical industries for our Industrial Centrifugal Pump:
- Water Treatment
- Paint, Print & Varnish
- Mechanical
- Pulp & Paper
- Chemical
- Surface Conditioning
- Demineralising
- Liquid Crystal Manufacture
- Simple design with only 19 components
- Open impeller
- Manufactured from high-grade materials
- High capacity capabilities
- Low maintenance costs
- Efficient solids-handling
- Wide range of applications
- ATEX available
- Materials : Stainless Steel AISI 316L
- Max Capacity : 74m³/hr
- Max Pressure : 100m
- Self Priming : No
- Max Solids Size : 6mm
- Max Temperature : 180ºC
- Viscosity : 0-200+ cSt
- Flushed seal: ideal when abrasive or sticky particles are present
- Long coupled execution: a great solution when pumping hot products like oil and paraffin wax at temperatures up to 180°C
- Flanged connections: the CTI can be supplied with a standard BSPT thread connection or with flanged connections according to EN102-1 or ANSI 150Lbs
- Buffer fluid system: this option is ideal when the product tends to solidify or crystalise
- Casing drainage: drain connection at the bottom of the pump casing allows for complete drainage of the pumped liquid from the casing
- Mounting brackets: complete pump unit may be assembled on a baseplate which can be firmly and permanently fixed to the foundation
