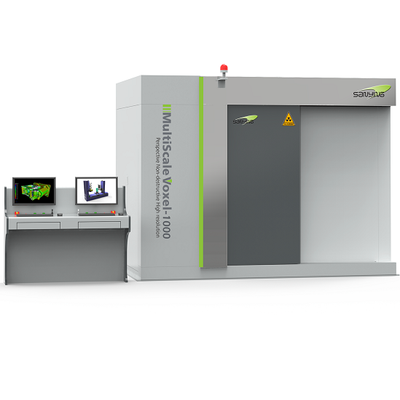

SANYING - Model multiscaleVoxel-1000 -Industrial CT System
The multiscaleVoxel-1000 is an industrial CT system designed to inspect medium to large-sized components with medium to high density. It is equipped with high-voltage X-ray sources ensuring excellent penetration capabilities tailored for high-density metals. These systems feature flat panel and linear array detectors to cater to various testing requirements. The inclusion of spiral and offset scanning modes facilitates the expansion of the imaging area, making it well-suited for complex inspection tasks. The system boasts a simple scanning process that supports rapid image reconstruction, alongside programmable scanning processes that enhance batch sample consistency and convenience. A dedicated image-enhancing algorithm ensures superior image clarity and quality. With a focus on technical specifications, the system offers a maximum resolution detectability of 30μm, operates with voltages of up to 600KV, and accommodates the scanning of samples as large as 800mm in diameter and 1100mm in height, supporting weights up to 100kg. Customizable hardware and software configurations are available to meet specific customer requirements.
multiscaleVoxel-1000is suitable for industrial CT systems for detecting medium and large size, medium and high-density components
The multiscaleVoxel-1000 features a large scanning area and strong X-ray penetrating ability, and is capable of large workpieces testing. It is suitable for CT testing of large and medium-sized castings, welding parts and composite materials in the automotive industries, as well as large-sized rocks and high-density metal archaeological relics.
- High voltage X-ray source with strong penetrating ability to high density metal
- Flat panel detectors and linear array detectors to meet diversified testing needs
- Spiral scanning and offset scanning to further expand imaging area
- Simple scanning process, rapid reconstruction of imaging and programmable scanning process to ensure the consistency and convenience of batch sample testing
- Dedicated algorithm to enhance image clarity and obtains high-quality image quality
Resolution
- Detectability : 30μm
X-ray source
- Tube type : Sealed
- Voltage : 600KV : 500KV/450KV
- Focal spot size*
- 0.7mm @0.7kW
- 2.0mm @1.5kW
- 0.4mm @0.7kW
- 1.0mm @1.5kW
Detector (Flat panel)**
- Imaging area : 427mm×427mm
- Pixel matrix : 3072×3072
Sample
- Maximum size : 800mm×1100mm（diameter × height）
- Maximum weight : 100kg
Equipment
- Dimension : 3700mm×2300mm×2800mm（length × width × height）
- Weight : 35000kg~60000kg
