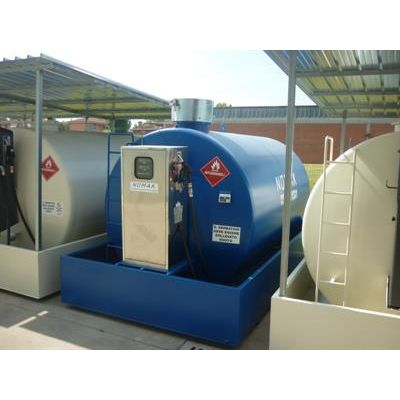

Industrial Distributors

Pump                                                                                           example head litre + price

• With vanes - volumetric - compact
• Built-in degaser
• Flow rate: 50 - 80 Lt/Min
• Max. suction height: 5 mt
• With built-in checking non-return valve
• Adjustable flow rate by-pass valve programmed from the outside
• Degasing: 100%
• Screech: 75db A band
• Revolutions: ~ 700/1`

Metre

• Volumetric
• Micrometric measuring setting 4 sides
• Precision: +/- 0,2% at all rates
• Repeatability: 100%
• Max. rate: 120 Lt/Min
• Min. rate: 5 Lt/Min

Technical characteristics of volumetric industrial distributors

• Volumetric electronic head (litres only)
• Automatic clearing
• Swivel fitting
• Electric and light installation with CESI EEX d. certification
• Supporting structure completely made in AISI 360 stainless steel and stainless steel covering panels
• 5-mt distribution pipe
• Automatic dispensing gun
