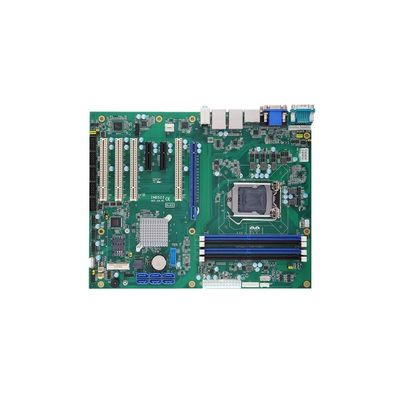

ATX - Model IMB523R -Industrial & Embedded Motherboard
ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, USB 3.1 Gen2, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort++, DVI-D, and HDMI
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
- DisplayPort, DVI-D, HDMI and VGA with triple-view supported
- 5 SATA-600 with RAID 0/1/5/10
- 1 PCI Express Mini Card slot
- Two USB 3.1 Gen2 and four USB 3.1 Gen1
- TPM 2.0 supported (optional)
- CPU : LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor
- Chipset : Intel® Q370
- System Memory : 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
- BIOS : AMI
- COM : 4 x RS-232 (Internal box header)
- 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
- USB :
- 2 x USB 3.1 Gen2 (rear IO)
- 4 x USB 3.1 Gen1 (rear IO, internal box header)
- 7 x USB 2.0 (pin header, 180D type A)
- Ethernet :
- 1 x 10/100/1000 Mbps (Intel® i219-LM, iAMT)
- 1 x 10/100/1000 Mbps (Intel® i211-AT)
- Display :
- 1 x VGA
- 1 x DVI-D
- 1 x HDMI
- 1 x DisplayPort++
- Digital I/O : 8-channel programmable
- Audio : HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC662
- Storage : 5 x SATA-600 with RAID 0/1/5/10
- Expansion :
- 1 x PCIe x16 slot
- 2 x PCIe x4 slot
- 4 x PCI slot
- 1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
- Others :
- 1 x PS/2 keyboard and mouse
- TPM TPM 2.0 (optional)
- SMBus
- Battery : Lithium 3 V/ 220 mAH
- Power Requirements : N/A
- Watchdog Timer : 255 levels, 1 to 255 sec.
- Hardware Monitoring : Yes
- Operating Temperature : 0°C to +60°C (+32°F to +140°F)
- Relative Humidity : 10% to 95% relative humidity, non-condensing
- Dimensions : 305 x 244 mm
- Board Thickness : 1.6 mm
- Certifications : CE
