Coantec - Model M40 Series -Industrial Endoscope with HD Touchscreen Modular Probe and 360 Degree Articulation

Weighing only 0.89kg with a 5000mAh rechargeable battery delivering four hours of operation, this portable industrial endoscope excels in aerospace, automotive, and energy applications. With more than ten system languages and comprehensive photo/video documentation capabilities, this industrial endoscope delivers reliable performance across diverse inspection scenarios.

The M40 Series is an upgraded product based on the C40. It is a high-definition, modular handheld industrial borescope. Building on its portable design, it features a larger industrial touchscreen and a more versatile modular probe and lens system, enhancing inspection adaptability and operational efficiency. It is suitable for visual inspection and diagnosis of complex internal structures.

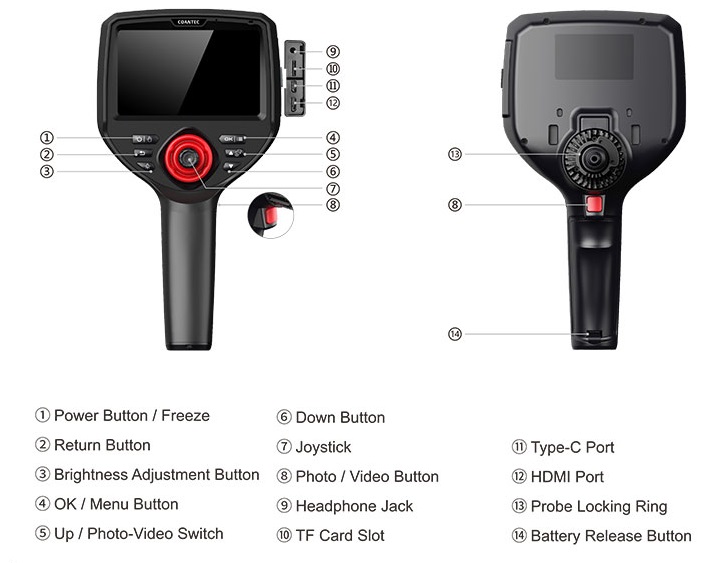

Touch Interaction System

• 5-inch touchscreen (800x480 resolution)
• Provides clear image display (or direct on-site observation and evaluation.
• Supports real-time 4« zoom and image rotation
• Allows instant magnification of details and multi-angle viewing from 0° to 270°. meeting various inspection perspective requirements.
• Photo capture, video recording, and real-time annotation
• Supports storage in JPEG / BMP / MP4 formats. Time stamps and annotations can be added lo images and videos for documentation and report generation.
• More than ten system languages available
• Meets the needs of multi-region and multilingual operating environments.

Strong Environmental Adaptability and Reliable Operation

• IP68 waterproof probe
• Suitable for harsh conditions such as moisture, oil contamination, and underwater environments.
• Quick-release high-strength magnetic base
• Provides stable support and enables fast adjustment of inspection angles.
• High-strength aluminum alloy quick-release heat-dissipation probe connector
• Heat dissipation efficiency increased by three times, ensuring stable performance during extended operation.
• Main unit weight: 0.89 kg (including base and battery)
• Lightweight and portable, suitable for prolonged handheld use.
• Built-in replaceable 5000mAh lithium battery
• Approximately 4 hours of battery life, meeting continuous on-site inspection demands.

Modular Inspection System and Flexible Configuration

• Supports quick replacement of probes with various diameters. Adapts to different bore sizes and depth inspection requirements.
• Multiple interchangeable lenses available, including direct-view, side-view, and dual focus options. Flexible selection according to inspection targets, enabling multifunctional coverage with a single device.
• 360° omnidirectional probe articulation with mechanical control. Allows flexible maneuvering within pipes and cavities.

Widely Applied:

Aerospace:
Internal defect detection for engine blades, combustion chambers, turbine structures, fuel nozzles, etc.

Automotive Manufacturing:
Inspection of engine block, valves, and internal cleanliness and assembly status of transmission.

Energy and Power:
Internal inspection of boiler pipelines, heat exchangers, transformer oil tanks, and wind turbine gearboxes.

Petrochemical: (corrected from “Etrochemical”)
Pipeline and tank inspection at refineries, reactor and heat exchanger inspection at chemical plants, maintenance of oil and gas transmission pipelines.

Rail Transit:
Evaluation of internal conditions of bogie hollow shafts, brake system piping, and air conditioning ducts.

Construction Engineering:
Detection of internal cavities, clogged drainage pipes, and dust accumulation in ventilation systems for concrete structures.

Special Equipment:
Regular inspection and safety assessment of pressure vessels, boilers, and pressure pipelines.

Military Industry and Research:
Internal inspection of weapon components, material structure observation, and teaching experimental demonstrations.
