Alindair

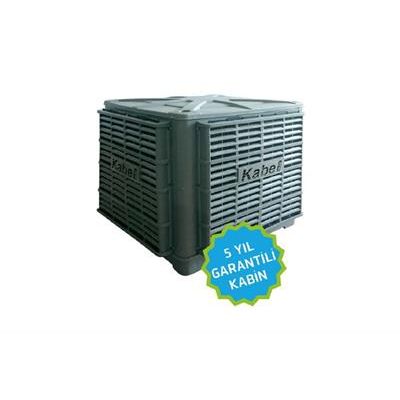

Kabel - Industrial Evaporative Cooling System
FromAlindair
Evaporative cooling based on evaporation of water. Water evaporates by absorbing heat from hot and dry air. Thus air temperature decreases.Water in the evaporative air cooler continiously wets highly efficient heat exchanger pads by using pump and distribution system. Hot and dry air drawn by the fan passes through the wet pads. Consequently; a portion of the water evaporates by absorbing heat from the air. Clean and fresh air is sent into the ambient thar will be cooled.
Most popular related searches
evaporative cooling
cooling system
industrial evaporative cooling
evaporative cooling system
water evaporator
air cleaning
axial fan
water pump
air filtration
air cooler
- Power : 1,5 kW
- V/Hz : 220-240V 50/60 Hz
- Air Flow Rate : 20000 m3/h
- Cooling Pad Size (L*W*H) : 770*870*100 mm
- Size (L*W) : 670*670 mm
- Vent Size (L*W) : 670*670 mm
- Net Weight : 75 Kg
- Application Area : 150-200 m2
- Water Tank : 25 L
- Fan Type : Axial Fan
- Fan Diameter : 0 630 mm
- Fan Speed : 12 phases, multi speeds
- Consumes 90% less energy compared to other coolinf systems.
- Installation costs are 50% cheaper than gas systems.
- There is no compressor unit. Maintenance costs are low.
- It is easy to assemble and disassamle.
- Wet pads ensures filtered air.
- Does not dry the air like gas systems, unlike this, it can make easier to breathe.
- It is an enviromental system. It does not make a harmful gas emissions to the ozone layer.
- Provides continuous air circulation and sends consitently fresh and healthy air to enviroment.
- Unlike other coolinf system, there is no need to diccontinue contact with the outside or the system by closing the doors and windows.
- Better cooling effect with water flow smoothly by open type water distributor.
- Frequency inverter control system, more energy saving. Low noise fan with large airflow and low noise.
- High quality water pump, stable water pressure, water lack protection. Superior drain valve with smooth drain to guarantee cooling effection.
- LCD control system, with functions of ventilation, cooling, swing, auto-clean, timing easy and safe operation.
- High strength weather ability PP material casing, for anti-aging, anti corrosion and UV-proof.
- Good efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
- Easy to install and clean dust filter, to keep the air clean and fresh.
