Reudo - Model PDBAB_492040026 -Industrial Filter Bags

• Medium Material : Fiber Glass, Non-Woven
• Usage : Dust Filter, Air Filter

Selecting high quality filtration material, thread from domestic and international market we manufacture the pulse jet filter bag. Top side constructions consist of ring top, flange top, snap top, soft cuffs or raw edge.

Bottom side constructions consist of disc, re-enforcement to enhance more life of filter bag. Our special designed snap band is of international quality ensures the 100% leak prove and longest life spun without deforming the round shape after pressing those several times. We use 3- needle feed of the arm stitching machine named union special- Juki , 2-needle cylinder bed named PFAFF, 2-needle flat bed named PFAFF. We also do thermo welded stitching in polyester, PP & PPS.

Non woven needle punch heat set filter felt are generally of 400 GSM to 900 GSM fibers are PE (400 to 600 GSM), PP(500-550 GSM), Acrylic(500-600GSM), PPS(500 to 600GSM), Aramid (500 to 600GSM), P84(500 to 600GSM), Glass fiber(750 to 1000 GSM) etc. Surface finish as singed, calendared, silicon treated, water oil repellent, PTFE coating as well as PTFE membrane, special construction as antistatic and micro fiber in some fabric. For high temperature application we import goods from European origin.

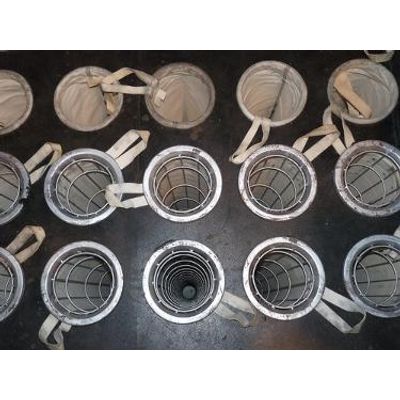

Different type of fixing arrangement for pulse jet type filter bag are shown below:

• Appropriate Filter Media Selection
• Reasonable Structure Design
• Excellent Sewing Skill
• Accurate Usage
• Reliable and effective dust-cleaning
• Avoiding unexpected abnormal conditions
• Equipment maintenance

• Pay Mode Terms: T/T (Bank Transfer)
• Port of Dispatch: Kolkata
• Production Capacity: 5000
• Delivery Time: 30 days
