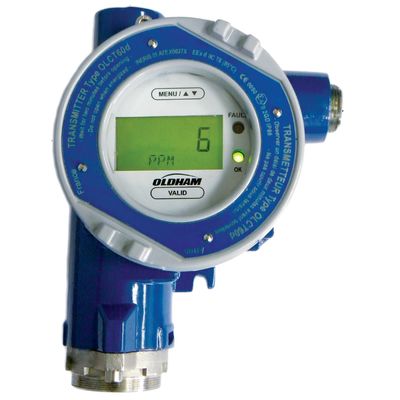

Teledyne - Model OLCT 60 -Industrial Gas Detector
The OLCT 60 is a generation of high quality gas detectors which covers all industrial needs for a variety of applications. The OLCT 60 Series is composed of several versions: XP or IS sensor (toxic or oxygen versions). Remote or on-board sensor. The OLCT 60AD version allows the sensor to be installed remotely up to 15 meters (standard), allowing detection in inaccessible locations, or in Zone 0 in the case of the intrinsically safe (IS) version. The detector units are made of 316L stainless steel, and are rugged and resistant to corrosion. Pre-calibrated sensors can be disconnected by turning the head of the unit. These “smart” sensors can be calibrated outside hazardous areas.
The OLCT 60 is equipped with non-intrusive access to a safe menu. In hazardous areas, calibration can be done with an operating mode in accordance with safety rules.
- Access to maintenance menu
- Pure air injection
- Zero validation*
- Standard gas injection
- Calibration validation taking into account the usage rate*
All of these tasks can be carried out without opening the detector, using a unique magnetic key. Access to the maintenance mode is protected to avoid accidental reprogramming of the unit.
* Automatic adjustment of zero and sensitivity
- 4-20 mA analog transmitter with display
- Detects O2, combustible, toxic and refrigerant gases
- Corrosion resistant
- Designed for industrial applications
- Available with remote sensor head, flameproof or intrinsic safety versions
- Non-intrusive, one-man calibration
- XP IR infrared sensor for combustible gases or CO2
