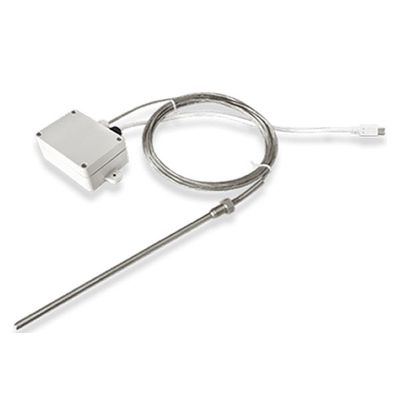

UbiBot - Model PT 100 -Industrial-grade Temperature Probe
This product adopts modbus-rtu protocol, and the computer can monitor the temperaturethroughthecommunication mode of RS485 interface. Cooperate with WS1 Pro series product to monitor thedataoncomputer platform or mobile APP, and generate temperature data report through the platform.
The PT100 probe is made of specially treated platinum wire wrapped around the inner surfaceof theprobe.Compared with the general axial thermal resistance, it can reflect the actual temperatureof themeasured object quickly and accurately. The buttcock line is made of high temperature zoneshieldedfiberglass material, with a temperature range of up to 200 degrees Celsius. PT100 adopts thechipimported from Germany with high stability, and adopts a more stable three-wire connectionmodetoensure the accuracy of temperature measurement and anti-interference ability of the system.Theprobeshell is made of 304 stainless steel, which has good resistance to acid and alkali corrosion. Theshell iscompletely wrapped and can reach IP68 waterproof grade, which means the probe can becontinuouslymeasured in water.
Professional mechanism, high quality material, specially design for industrial use
- Monitoring range: -200 to 400?
- Size of probe: 6 x 200mm
- Size of USB cable: 3.5 x 500mm
- Connector: Micro USB / Audio Plug
- Communications protocol: ModBus RTU
- IP rate of probe: IP 68
