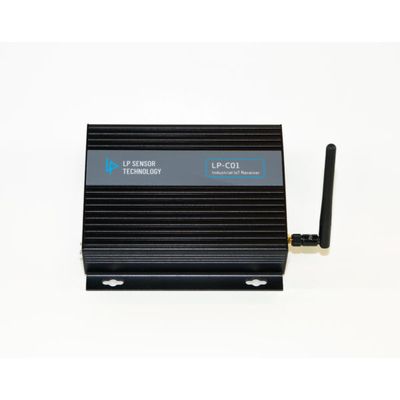

LP - Model LP-C01 -Industrial IoT Receiver
The LP-C01 Module is an encrypted wireless “LoRa” communication receiver unit that can communicate with up to 128 LP-M01 remote Input Modules. The LP-C01 converts encrypted LoRa status information from LP-M01 modules to Modbus TCP or Modbus RTU via its RJ45 Ethernet and serial EIA-485 ports for any SCADA or Control System client.LP-C01 LoRa wireless technology implements secure 128-bit encryption with embedded alarm signals that can be monitored and alarmed via the Modbus client. With a very low power consumption and a wireless communication range between an LP-C01 and an LP-M01 of up to 1 mile, it would significantly reduce material, design, and labor costs when compared to a traditional hard-wired solution.
Power Supply:
12/24 V
10-30VDC, 3 W maximum
48/125V
36-200Vdc or 85-140 Vac 3 W maximum
125/250 V
85–300 Vdc or 85–264 Vac, 3 W maximum
Communications Interface:
Input latency:<100ms
Wireless communication encryption: AES128
Wireless Channel:
128 maximum channels supported
Latency between channel switching: 10ms
Port:
Ethernet port: 100/10Mbps, Protocol: Modbus TCP
RS485 Serial Port: 115200 bits/s, Protocol: Modbus RTU
USB-C: settings port
Dimensions:
153mm(L)*143mm(W)*41.2(H)
6.02″(L)*5.62mm(W)*1.62(H)
