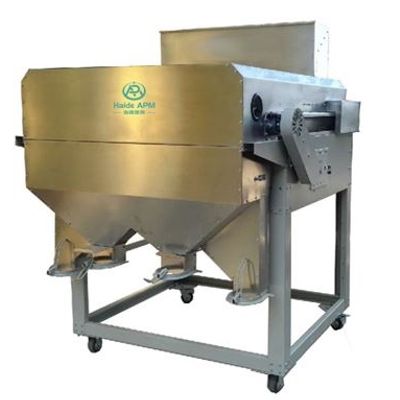

Haide APM - Model 5CXM -Industrial Magnetic Separator for Clod Separation
The Industrial Magnetic Separator is engineered to efficiently remove soil clods from beans and other materials. It operates by guiding materials over a magnetic roller at a regulated speed, using differences in magnetic attraction to separate clods. Constructed from durable 304 stainless steel, it features a magnetic roller with a strength exceeding 16,000 Gauss and a wide 1300mm magnetic surface. The separator supports optional elevator configurations and offers rapid bulk grain processing. Its robust stainless steel components ensure longevity, and its adjustable transducers accommodate various material types, improving the purity of processed beans and sesame to 99%. With an impressive production capacity of 10 to 40 tons per hour, it is a reliable solution for high-capacity agricultural processing operations.
Magnetic Separator is to separate soil block and clod from beans or other material.
The belt works with the appropriate speed, material go through a strong magnetic roller, due to the different strength of attraction between material and clod , to separate clod from material.
Custom attributes:
- Applicable materials: Beans, sesame,
- Product purity: 99%
- Production: 10-40t/h
- Configuration: Optional Elevator
Working principle
The material is fed from elevator into feed hopper, through elevator, tee joint into grain tank, then it is distributed evenly on conveyor belt through bulk grain.
Under the action of conveyor belt, the material go through two lines filtered magnet and magnetic roller (removing the ferromagnetic iron impurities to avoid these impurities touch the magnetic roller to damage the conveyor belt), the scattered material form a paraboloid after horizontal projectile.
Due to the soil block contain ferromagnetic substance, with the strong magnetic effect of magnetic roller; the movement path of soil block will be change.
Finally the material will be separated from soil block through spreader plate sorting, respectively into grain outlet and soil block outlet.
Features
- The key components are stainless steel structure;
- Soil block magnetic election grader can be adjusted even withtransducer, which is suitable for all kinds of material.
Advantages
- 304 stainless steel machine, good quality.
- Magnetic strength of magnetic roller is more than 16,000 Gauss.
- Wide magnetic surface design: 1300mm,Even more.
- Special design of bulk grain equipment, Rapid bulk grain.
