Longmem - Industrial Membrane Film

A Low Pressure Thin-Film Composite (TFC) membrane is a type of membrane used in water treatment systems. It is designed to operate at very low pressures while still maintaining high rejection rates for salts, minerals, and other impurities.

TFC membranes consist of a thin polyamide layer that is selectively permeable to water molecules, allowing them to pass through while blocking the passage of dissolved solids and contaminants. This thin layer is typically supported by a porous substrate or backing material to provide mechanical strength.

Low Pressure TFC membranes are specifically engineered to operate at lower pressures compared to standard  membranes. They are designed for applications where energy efficiency and cost reduction are important considerations. By operating at lower pressures, these membranes can reduce the energy consumption required for the process, resulting in lower operational costs.

The low pressure capabilities of these membranes make them suitable for use in various industries such as desalination, wastewater treatment, and water purification. They can be used in both residential and industrial settings where there is a need to remove dissolved salts or other contaminants from water sources.

Overall, Low Pressure Thin-Film Composite membranes offer an efficient and cost-effective solution for high-quality water production with reduced energy consumption.

How does the LM-LP-31-FL1,Low Pressure Thin-Flim Composite Membrane  come from?

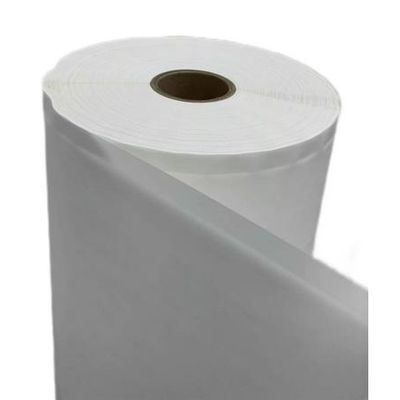

The LM-LP-31-FL1 is a specific type of  Low Pressure Thin-Film Composite (TFC) membrane manufactured by Jiangsu Longmem Technology Co., Ltd.. This particular membrane is designed for use in water treatment systems.

The manufacturing process for the LM-LP-31-FL1 membrane several steps.

First, a thin polyamide layer is formed on top of a porous support material or substrate. This polyamide layer is responsible for the selectiveability of the membrane, allowing water molecules to pass through while blocking impurities.

Next, the membrane goes through a bonding process where it is to other layers that provide additional strength and support. These layers may include non-woven fabrics or mesh materials that enhance the mechanical properties of the membrane.

After bonding, the membranes are cut into individual sheets or rolls of desired dimensions. The membranes are then for quality control purposes to ensure they meet specific performance standards and rejection rates.

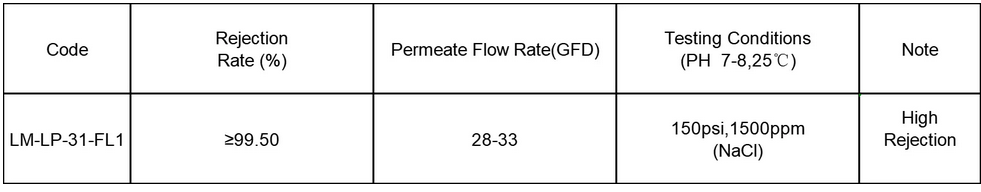

The LM-LP-31-FL1 Low Pressure TFC membranes are known for their high permeability and rejection rates, making them suitable for applications where low-pressure operation is required. Membranes have been specifically engineered to minimize energy consumption while still delivering excellent water quality.
