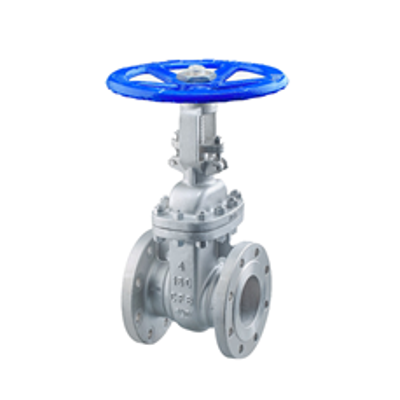

CTV-Armaturen - Model Type 03: SS316-15 Series -Industrial Metal Seated Gate Valve
Type 03: SS316-Series 14-50-800-PN16-25. In Stainless Steel DIN/EN-1.4408 - V4A (SS-316 - ASTM A351 CF8M). DN50 – DN800 PN25.
Most popular related searches
Standards:
- Design & Manufacture conform to DIN 3352
- Face to Face dimension conform to DIN 3202
- Flange dimension conform to EN1092-1/B1
- Test & inspection conform to EN12266
- Pressure and temperature rating conform to ASME B16.34
Product properties:
- Suitable Temperature: -29 ~ 425°C
- Suitable Media: Water, Oil, Gas
