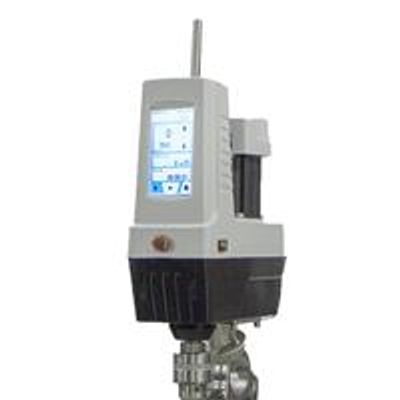

Crossover - Model 1540 -Industrial Mixers
A powerful combination of torque and electronic sophistication. The robust ½ horsepower motor, PC/PLC communications and extensive features make the Caframo Crossover unparalleled in the market. Mixing up to 200 litres (55 gallons) of basic pre-mix, industrial pilot plant volumes, or full production batches, this portable mixer weighs only 12 kg (26.5 lb). The resistive touch screen enables simple feature operation (timers, alarms, rotation direction, resume on power up, start, stop) without removing your gloves!
Control the mixer with a PC or PLC via USB, RS232 or 4‑20 mA or data log speed and torque directly to a memory stick. Install immediately with standard 120 V cord set, and four bolt mounting. Optional plate or C‑clamp set attaches the Crossover to a stand, drum or customer mount and allows optimal shaft angle in vessel. Includes chuck, chuck key, chuck shaft guard, installed screen protector, USB memory stick, mounting bolts, power cord, manual, calibration certificate and three year warranty.
- Speed 50-1500 rpm
- Volume Maximum 200 L (55 US Gallons)
- Viscosity Maximum 180,000 mPas (180,000 cP)
- Torque Maximum 3000 Ncm (264 in-lbs = 4248 in-oz)
- Output Power 300 Watts (½ hp)
- Speed Display Yes
- Speed - Low Range 50-299 rpm
- Speed - High Range 300-1500 rpm
- Speed Accuracy Rolling average of 10 second period
- Torque Display Yes
- Zero Torque Yes
- Timer Yes
- Alarm Yes
- Connectivity Ports Standard USB A, Mini USB B, DB9, 4-20 mA
- Through Shaft Yes
- Chuck Maximum Shaft Diameter 16 mm (⅝ in)
- Chuck and Shaft Guard Yes
- Rotation Direction Clockwise and counterclockwise
- Housing Flame Retardant Nylon 6
- Weight 12 kg (26.5 lb)
- Voltage 120 volt
- Frequency 60 Hz
- Ambient Temperature Operation 5-40 °C (41-104 °F)
- Relative Humidity Operation 80 %
- Approvals CSA listed to Canada and US standards
- Warranty 3 years
- Resistive Touch Screen Display
- Intuitive Speed Adjustment
- Portable
- 120 V cord set
- Counter-clockwise rotation selection
- Name Customization
- Resume on Power up
- Torque Zero feature
- Cycle Timer
- Run Time Display
- Torque Min/Max Setting
- Audible Alarm
- PC/PLC connectivity
- Multiple com ports
- Data Logging
- Sealed Housing
- Quick Stop
- Installed Screen Protector
- Chuck Shaft Guard
- Adjustable Keyed Chuck
- Automatic Transmission
- Brushless DC motor - fan cooled
- Maintenance Free
- Operate while wearing PPE or sterility gloves
- Precisely set desired speed or adjust on screen
- Meet the changing needs of multiple facilities
- Easy installation to North American grounded outlet
- Improve mixing and impeller functionality
- Assign an identifier name or number to each mixer
- Optional auto-start operation upon power restoration
- Monitor viscosity changes as they relate to torque
- Set total mixing time; stop mixing or sound alarm
- Track total mixing time from power up
- Stop mixing or sound alarm at desired torque reading
- Notification of desired time or torque level
- Integrate into existing monitoring and control systems
- Capability for RS232 RS485 PLC and Ethernet or PC
- Document results: speed / torque / time / date
- Protection in aggressive environments; wash down
- Easily access button to immediately stop mixing
- Protects display; replaceable if covered by splashes or dust
- Guard spinning chuck and upper shaft for safety
- Holds shaft securely; diameters up to 16 mm (⅝ in)
- Shift gears without manually stopping mixer
- High efficiency no maintenance motor
- Always available – no required maintenance schedule
