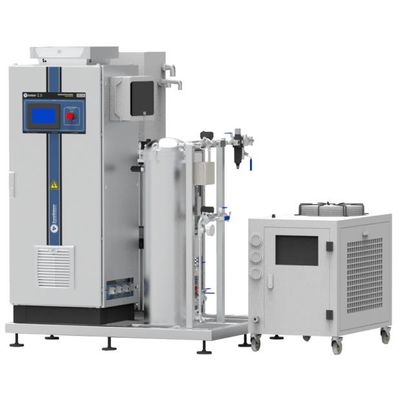

Ozcon - Model GRZO500-EPSF Series -Industrial Ozone Generator
Industrial Ozone Generator, glycol-cooled, equipped with a compressor, oxygen concentrator, dryer, chiller, and PLC control featuring a touch screen interface. Produces 500g O3/h at a concentration of 148g/Nm3. 400V, 3P+N, 50Hz, 3.2 kW.
Compact ozone generator, glycol-cooled and designed for high ozone concentration, features an air compressor and integrated Oxygen concentrator. It includes filters, a refrigerant dryer, a chiller, an ozone leak sensor, and a PLC control with a touch screen, data logging, and remote access capabilities. Constructed with high-quality components, this unit is ready for electrical connection and immediate operation. Robust, durable, and reliable.
2 years warranty (expandable with a maintenance contract)
What are the applications?
This powerful ozone generator range is primarily utilized for water disinfection and purification treatments, often employed in wastewater treatment plants (WWTP), drinking water treatment plants (DWTP), agricultural irrigation lines, fish farms, aquariums, lake and pond restoration, and swimming pools, among other applications.
Product Details
- Ozone Generation system: A ferrule of 0.5 KgO3/h, with borosilicate dielectric. Glycol cooled.
- Compressed air unit: Pre-filter + Compressor + filter + dryer
- Oxygen concentrator: Activated alumina columns, 95% purity, -30ºC Dew Point.
- Refrigeration: Chiller + Container with 25 litres of prepared Glycol
- Control: By PLC V700, 7 “. Recipe manager, weekly programmer, alarm and maintenance manager
- Communication: Wired remote ON, Status relays (Started, Generating, Failure), Allows ModBus communication and Remote Access with Total Control with VPN router included.
- Sensors: Ozone Amps, Compressed Air Pressure, Oxygen Pressure and Flow Rate, Refrigeration Flow Rate and Temperature, Ozone Leaks, Door Opening
- Technical Valves: Outlet ozone solenoid valve, Oxygen flow meter with manual regulation
- Included in the packaging: Coolant Bottle + Instruction Manual
- Ozone Production: 500 gO3/h
- Ozone concentration: Maximum = 200 g/Nm3
- Optimal = 148 g/Nm3
- Air/Oxygen flow: 60 lpm
- Power supply: 400V, 3P+N, 50Hz
- Electric Power: Ozone Generator = 3.4 KW
- PSA = 5 KW
- Chiller = 1.6 KW
- Gas connection: OUT Thread 1/2 “Female + with Fitting for tube 10mm Ext.
- Dimensions: 1400 x 1400 x 1850 mm (Width x Depth x Height)
- Weight: 500 Kg
- Packed size: Consult
- Humidity: <85%
- Room temperature: 5 – 35ºC
- Working pressure: 1 bar
- Source gas: Oxygen is generated by the equipment using its PSA unit
- Quality of the water that is refrigerated: Fill the chiller with the prepared Glycol solution included in the supply
- Others: Supports Venturi on exit
The room must be well-ventilated. There must be an extraction system in case of leaks.
It is recommended to install an ozone leak sensor and a sign with safety warnings in the room.
- Made in: Spain
- Sold from: 2015
- Last revision: 2023
- Certificates: CE, BIOCIDA PT2, PT4, PT5, PT11
- Warranty: 2 years warranty (indefinitely extendable with a maintenance contract)
- UFI number: G000-W09P-Y00M-TV8V
GRZO range ozone generators feature a touch screen for simple programming of various treatments throughout the day. Upon receiving a command, the refrigeration circuit activates and the compressor begins drawing air from the atmosphere. This air is then filtered, dried, and passed into the PSA where nitrogen is removed. The oxygen is concentrated to a purity of 95% and directed to the generation system, where corona discharge transforms it into ozone. Additionally, an oxygen flow meter allows for the adjustment of the desired flow rate.
- Safety manual.
- User manual, installation and commissioning.
- Maintenance manual.
- Declaration of Conformity.
- Warranty Certificate.
- Compliance with biocidal regulations.
- Our Quality Test results.
- GRZO series ozone generators use high frequency corona discharge technology with borosilicate dielectric.
