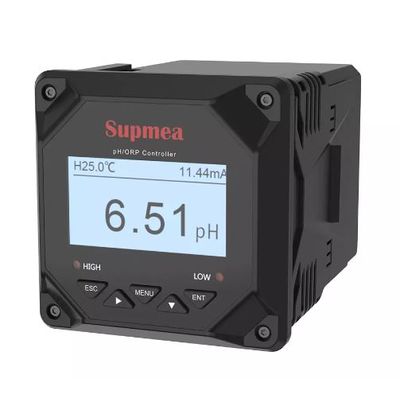

Meacon - Model SUP-PH6.0 -Industrial pH ORP Meter

FromMeacon Automation

SHARE

SUP-PH6.0 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Most popular related searches

water treatment system

pH control system

process water treatment system

industrial process water treatment

process water treatment controller

water treatment process control

process water treatment

Introduction
SUP-PH6.0 Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.

Features

Automatically Temperature Compensation
Directly switchable to PH or ORP
Large LCD display with background lighting
PH or ORP sensors can be connected thanks to the sensor supply integrated in the output
Using the setup program: user-friendly programming
4-20mA analog output
RS485 communication
Relay output

Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Power supply: 220V±10%,50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay

Product : pH meter, pH controller
Model : SUP-PH6.0
Measure range :

pH: 0-14 pH, ±0.02pH
ORP: -1000 ~1000mV, ±1mV

Measuring medium : Liquid
Input Resistance : ≥1012Ω
Temp compensation : Manual/ Auto temperature compensation
Temperature Range : -10~130°C, NTC10K or PT1000
Communication : RS485, Modbus-RTU
Signal output : 4-20mA, maximum loop 750Ω, 0.2%FS
Power supply : 220V±10%,24V±20%,50Hz/60Hz
Relay output : 250V, 3A
